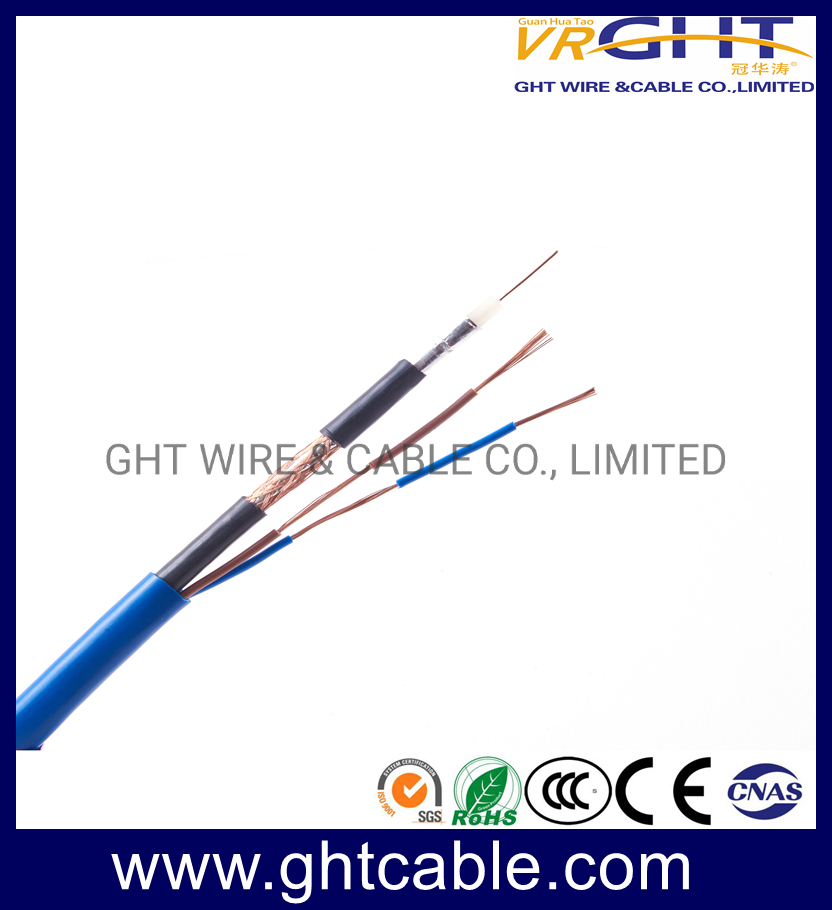

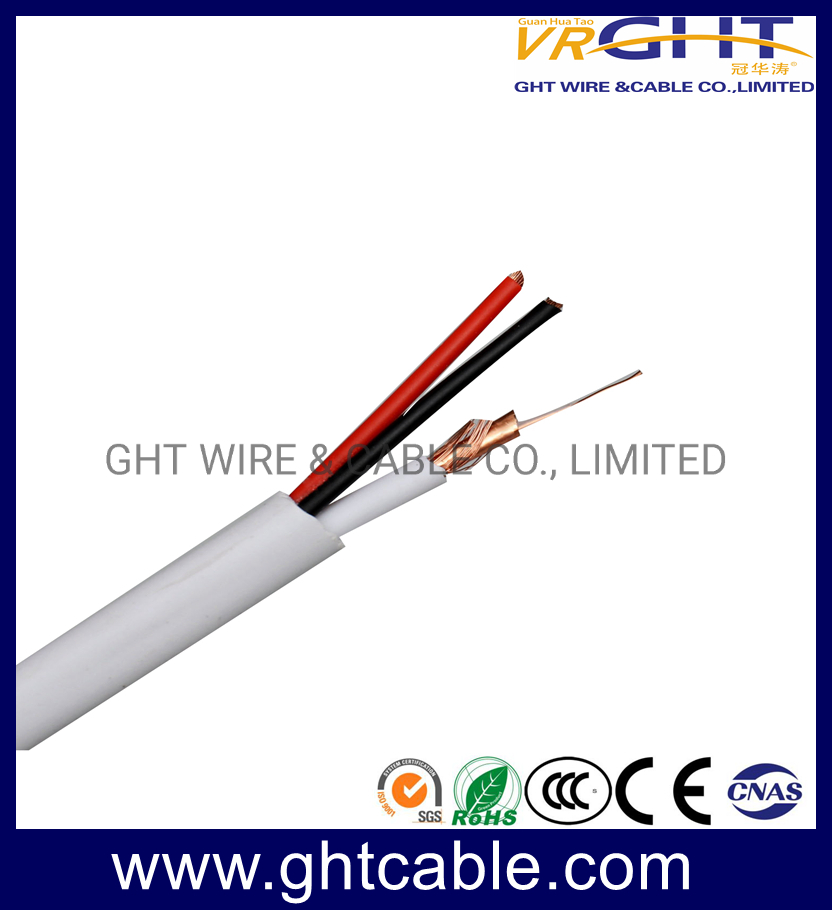

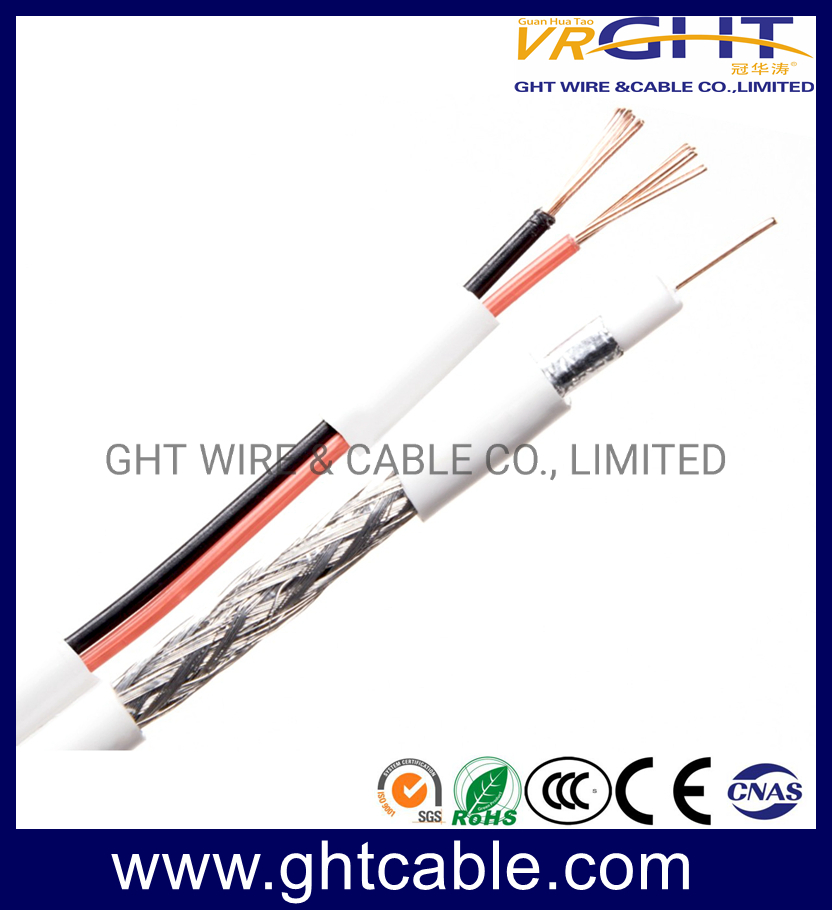

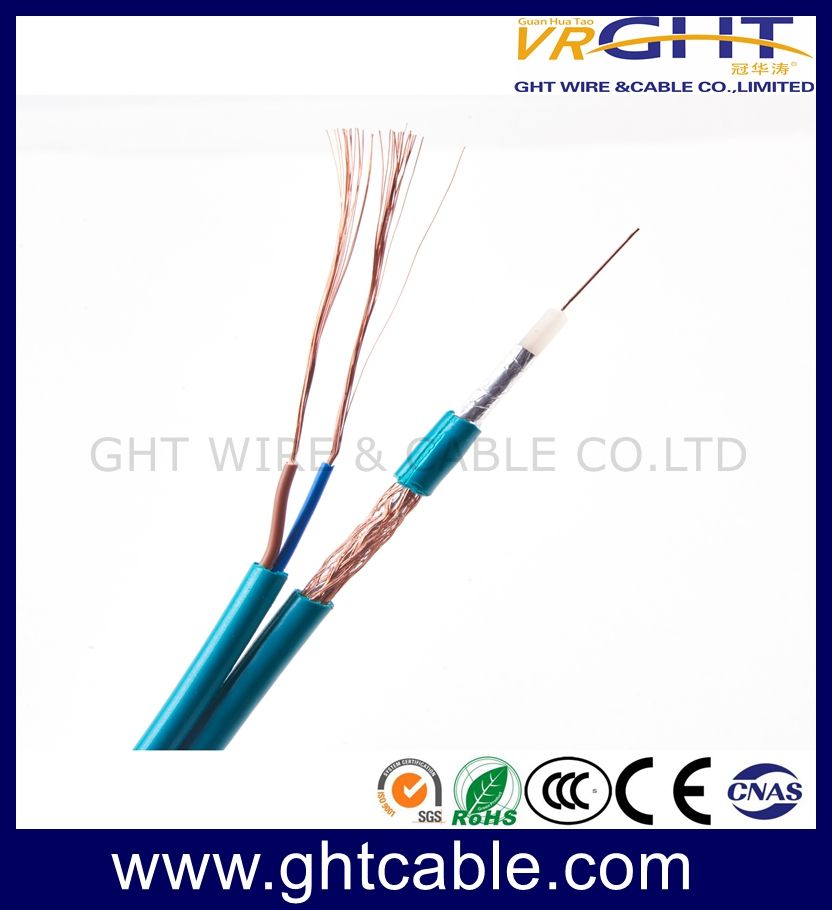

Composite Siamese Antenna Cable Rg59+ 2c
Product DescriptionOPTIONS FOR MATERIAL(ALL CUSTOMIZED): 1) Conductor: TC, CCS, CCA, BC, OFC available; 2) Foam: Foam PE, PE, SPE available;3) Braiding Foil: Al-Foil or Bonded Al-Foil available;4) Braiding coverage: Between 30- 97% available;5) Braiding net: 32, 64, 80, 96, 112,128,144 and more ava......
Send Inquiry
Product Description
Product Description
OPTIONS FOR MATERIAL(ALL CUSTOMIZED):
1) Conductor: TC, CCS, CCA, BC, OFC available;
2) Foam: Foam PE, PE, SPE available;
3) Braiding Foil: Al-Foil or Bonded Al-Foil available;
4) Braiding coverage: Between 30- 97% available;
5) Braiding net: 32, 64, 80, 96, 112,128,144 and more available;
6) Braiding wire diameter: 0.12, 0.13, 0.14, 0.15, 0.16, 0.18mm available;
7) Jacket Color: Black or White available;
8) Jacket material: PVC, PE ,PP, Rohs, available
9) Power Cable: specification customized
DETAILED SPECIFICATION OF SIAMESE COAXIAL CABLE SYV-75-3 +2C:
1) Construction
Center Conductor: | 0.81±0.01mm CCA | |
Dielectric: | 3.67±0.1mm PE | |
Braid: | 128*0.12mm ALMG | |
Jacket: | 6.0±0.1mm PVC | |
Power cable: | 2*7*0.38 CCA red and black power cable | |
Jelly/APD | Per Customer' Special Requirement | |
2) Characteristics | ||
Sparker Test: | 4000VAC | |
Impedance: | 75±3 Ohm | |
Capacitance: | 50±3pF/m | |
Velocity of Propagation: | 85% | |
Return Loss: | 20dB min (5-1000MHz) | |
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.86 | 2.82 |
55 | 2.05 | 6.73 |
187 | 3.60 | 11.81 |
300 | 4.45 | 14.6 |
450 | 5.40 | 17.72 |
600 | 6.20 | 20.34 |
750 | 6.97 | 22.87 |
865 | 7.52 | 24.67 |
1000 | 8.12 | 26.64 |
APPLICATION:
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems

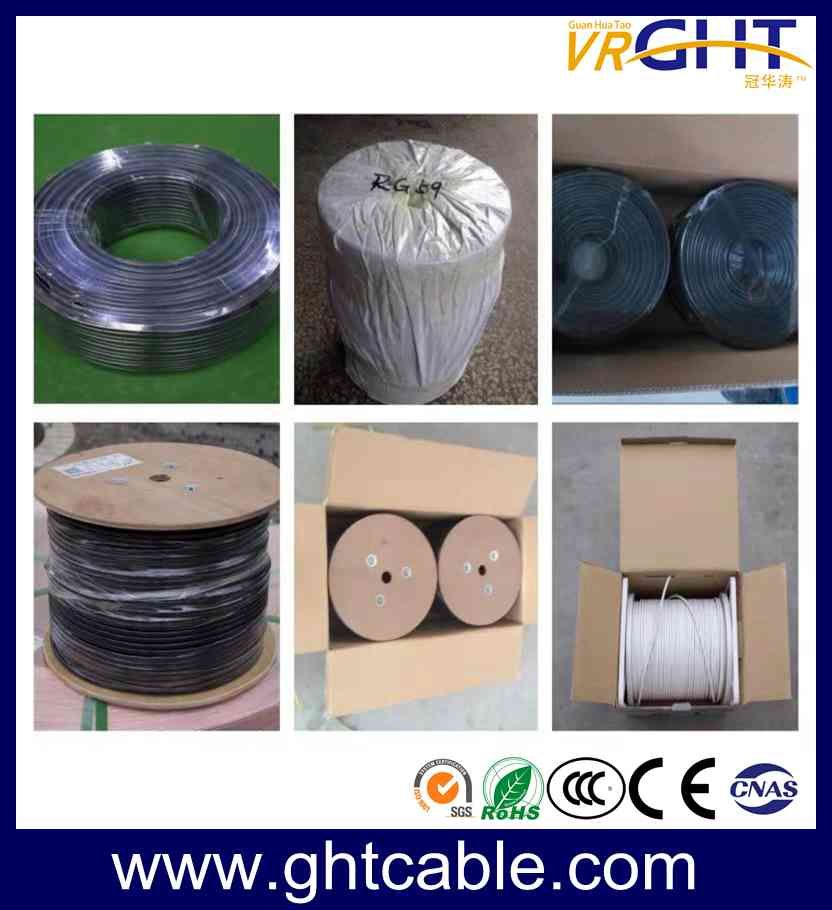

Packing
Factory Presentation&Certification
FAQ
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, HDMI cable, VGA cable, telephone cable, speaker cable and etc.
Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.
Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.
Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.
Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.
Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.
Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.
