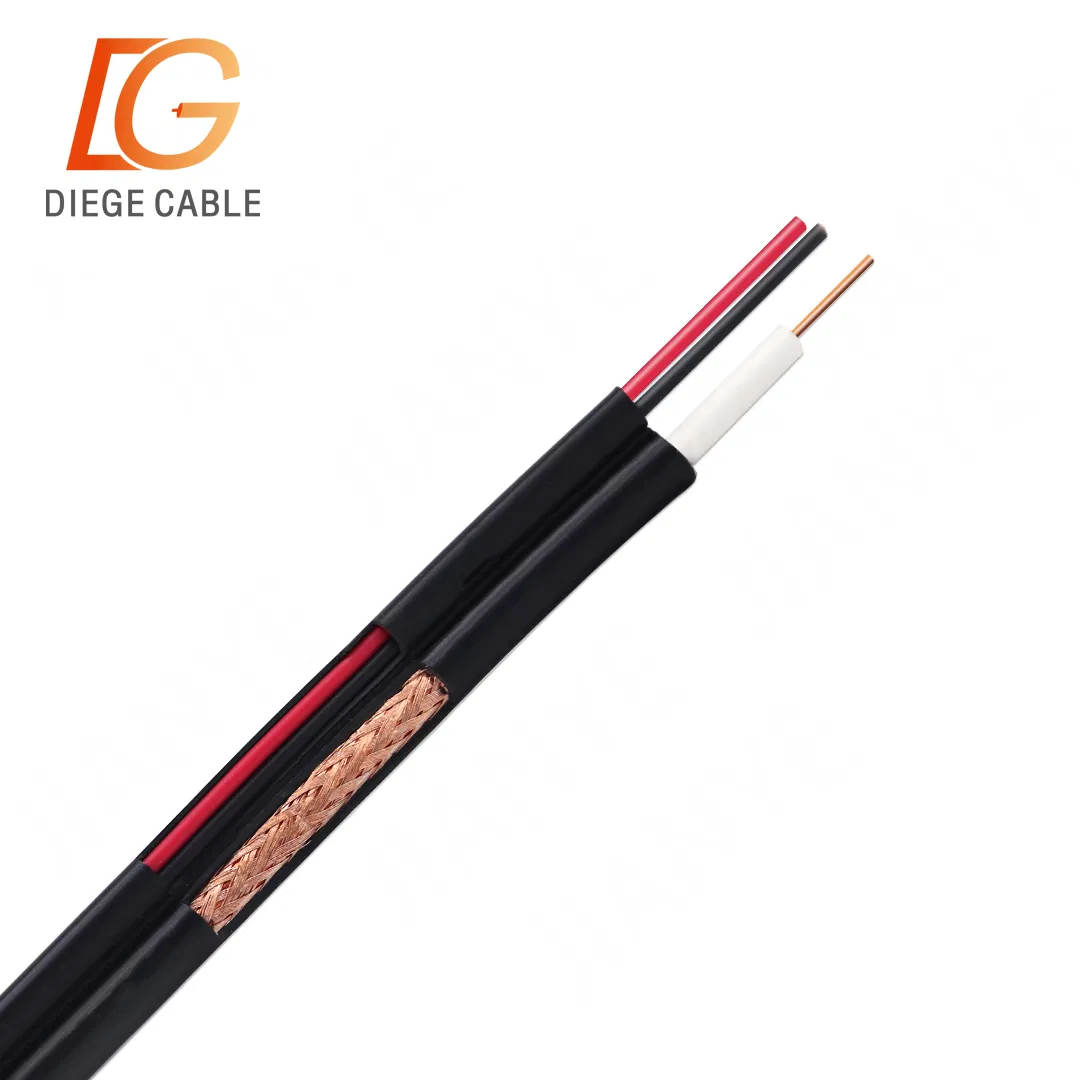

Competitive Price Siamese Kablo Coax Cabo CCTV Factory Supplier Manufacturercoaxial Rg59 RG6 Cable
Application:1. CATV-community antenna television2. CCTV-closed-circuit television3. DBS-direct broadcasting satellite StandardTRI-ShieldQUAD-Shield ConductormaterialBC/CCA/CCSBC/CCA/CCSBC/CCA/CCSNom.Dia.1.02mm1.02mm1.02mm DielectricmaterialFoam PE/Solid PEFoam PE/Solid PEFoam PE/Solid PENom.Dia4.8m......
Send Inquiry
Product Description
Application:
1. CATV-community antenna television
2. CCTV-closed-circuit television
3. DBS-direct broadcasting satellite
Standard | TRI-Shield | QUAD-Shield | ||
Conductor | material | BC/CCA/CCS | BC/CCA/CCS | BC/CCA/CCS |
Nom.Dia. | 1.02mm | 1.02mm | 1.02mm | |
Dielectric | material | Foam PE/Solid PE | Foam PE/Solid PE | Foam PE/Solid PE |
Nom.Dia | 4.8mm | 4.8mm | 4.8mm | |
Shield | Material | AL Foil+AL/BC/CCA Braiding+Al Foil | AL Foil+AL/BC/CCA Braiding+Al Foil | (AL Foil+AL/BC/CCA Braiding)*2 |
Coverage | 45%-95% | 45%-95% | 60%/40% | |
Jacket | Material | PVC/PE | PVC/PE | PVC/PE |
Nom.Thick | 0.8mm | 0.8mm | 0.8mm | |
Nom.Dia. | 6.8mm | 7.06mm | 7.42mm |
Attenuation | ||
Frequency(MHZ) | Maximum(dB/100ft) | Maximum(dB/100m) |
5 | 0.58 | 1.9 |
55 | 1.6 | 5.25 |
187 | 2.85 | 9.35 |
300 | 3.55 | 11.64 |
450 | 4.4 | 14.43 |
600 | 5.1 | 16.73 |
750 | 5.65 | 18.54 |
865 | 6.1 | 20.01 |
1000 | 6.55 | 21.49 |
Nominal Impedance(Ohm) | 75+/-3 | |
Nominal Velocity of Propagation(%) | 85 | |
Nominal Capacitance(pF/m) | 50 | |
Speaker Test(VAC) | 4000 | |
SRL(dB) | 20 | |
1) Self-owned factory, we can control quality directly.
2) Factory directly, so our cables have competitive prices.
3) Shipping near Shanghai Port and Ningbo Port, very convenience.

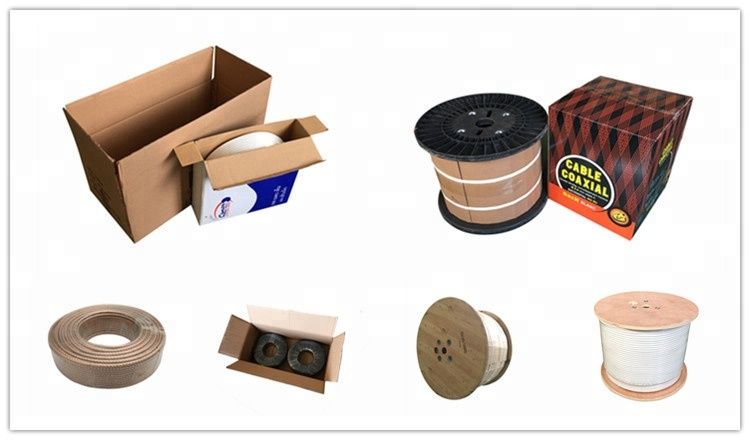

Neutral Packing1, 50m/100m/300m/305m/100yard/300yard can be
packed in clarity film, several rolls into one carton.
2, 300m/305m/500m/300yard can be packed in wooden drum, one or two drums into one carton.
3, customized package.
Our Service:
1.)We are a professional cable manufacturer, can offer you all the best cable solutions.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.
4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
Our Advantages:
1) Self-owned factory, we can control quality directly.
2) Factory directly, so our cables have competitive prices.
3) Shipping near Shanghai Port and Ningbo Port, very convenience.
2.)We can send you free sample to check our quality.
3.)We are familiar with different market, can offer multi-language service.
4.)We have quality control department, and after sale service.
5.)Closed to the Ningbo and Shanghai port, the best logistic service.
Our Advantages:
1) Self-owned factory, we can control quality directly.
2) Factory directly, so our cables have competitive prices.
3) Shipping near Shanghai Port and Ningbo Port, very convenience.
