              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              • Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial CableCommunication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              • Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial CableCommunication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              • Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial CableCommunication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              • Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial CableCommunication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable

              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable

              Communication CCTV CATV CPR Eca RG11 Coaxial CablePRODUCT DESCRIPTION:InnerConductor:1/1.63mmBCorCCSlnsulation:7.11mmFoamedPolyethyleneShield1:AIFoilLongitudinal,bondedShield2:BCorALwireBraidJacket:10.30mmPVCorPEFlammability grade: CMX,CMOperating temperature: -40~70ºC or-25~70ºCRe......

              Send Inquiry

              Product Description

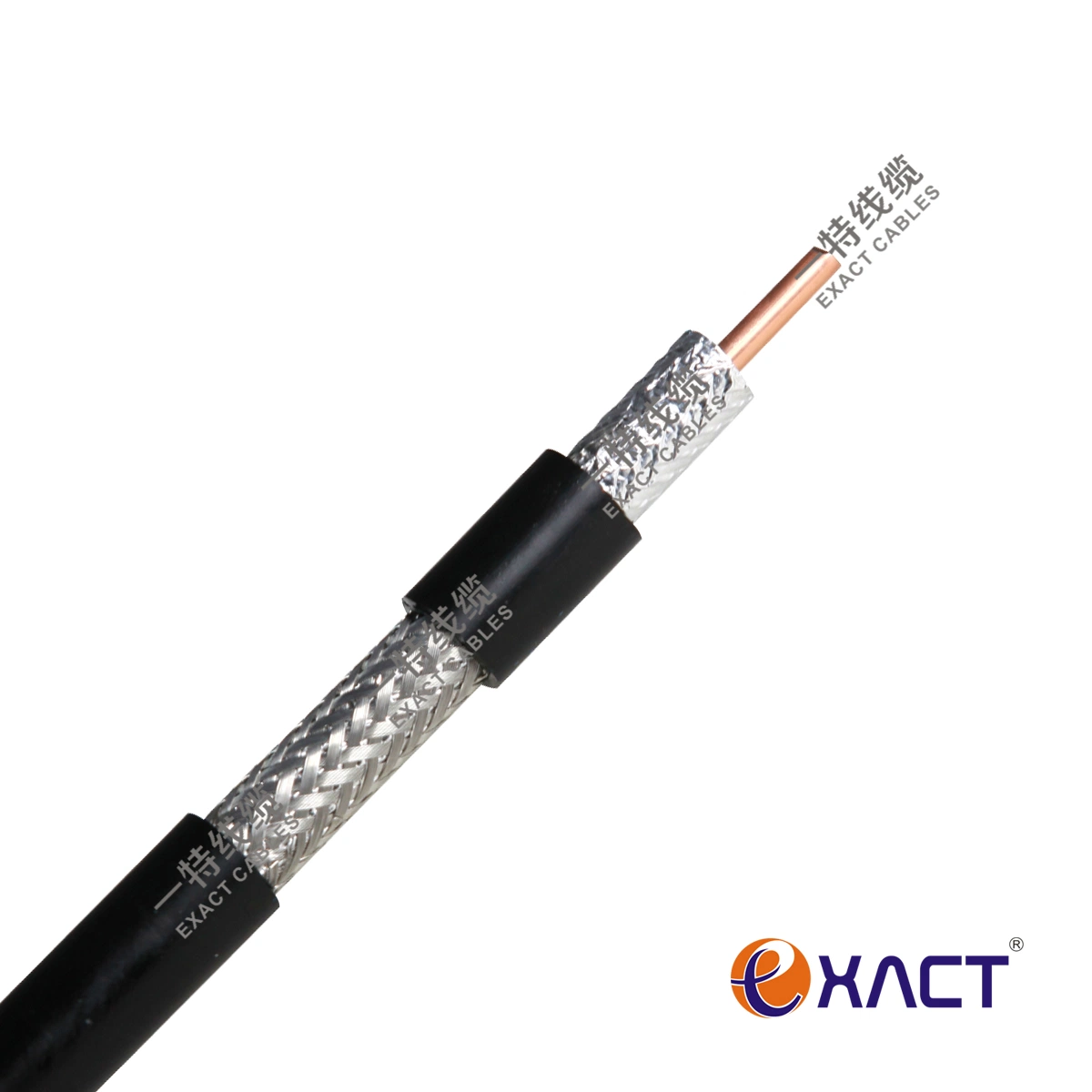

              Communication CCTV CATV CPR Eca RG11 Coaxial Cable

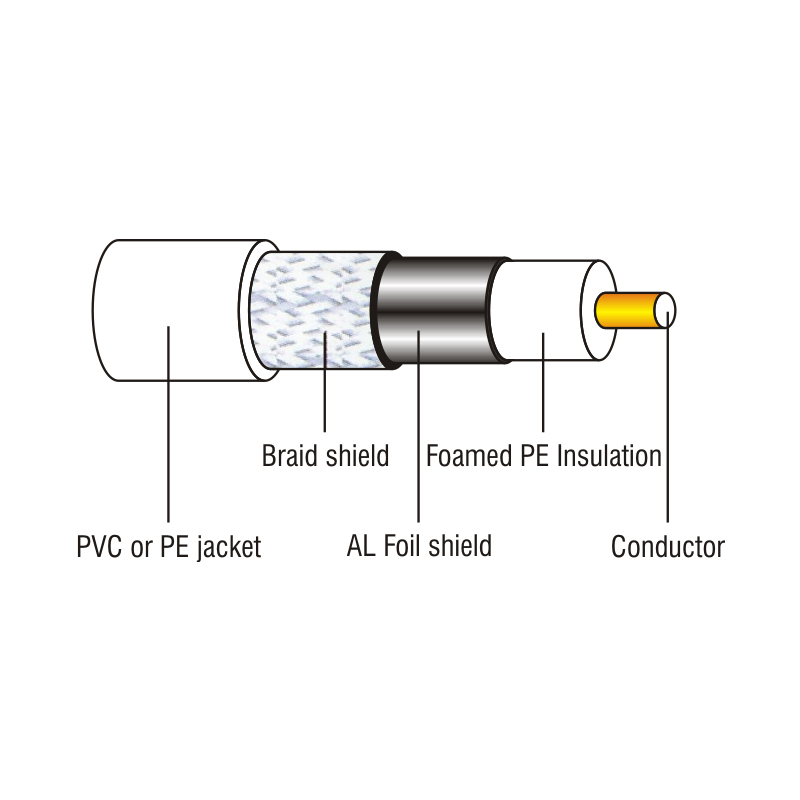

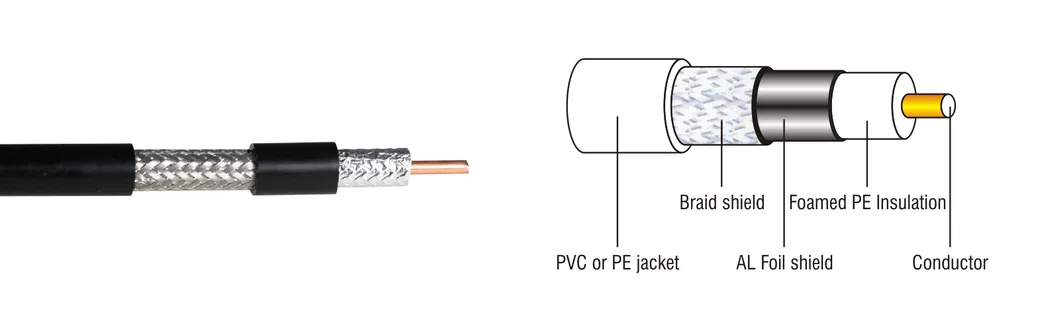

              PRODUCT DESCRIPTION:

              • InnerConductor:1/1.63mmBCorCCS
              • lnsulation:7.11mmFoamedPolyethylene
              • Shield1:AIFoilLongitudinal,bonded
              • Shield2:BCorALwireBraid
              • Jacket:10.30mmPVCorPE
              • Flammability grade: CMX,CM
              • Operating temperature: -40~70ºC or-25~70ºC
              • Reference Standard:MIL-C-17


              ELECTRICALCHARACTERISTICS:
              • Impedance:75±3Ω
              • Capacitance:52±3pF/m
              • Max Attenuation:(20ºC)
              55dB/100m3.15
              833.87
              1875.74
              2116.23
              2506.72
              3007.38
              3507.94
              4008.53
              4509.02
              5009.51
              5509.97
              60010.43
              75011.97
              86513.05
              100014.27




              APPLICATlON:
              Used for wide band, the data transmission and the signal of computer.
              Part N0.No./mmConductor No. (mm)Insulation Dia. (mm)Braid ShieldJacket Dia. (mm)Impedance
              RG591/0.810.813.6516×6×0.126.2075±3Ω
              RG61/1.021.024.6016×7×0.126.9075±3Ω
              RG111/1.631.637.1124×6×0.1210.3075±3Ω






              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable

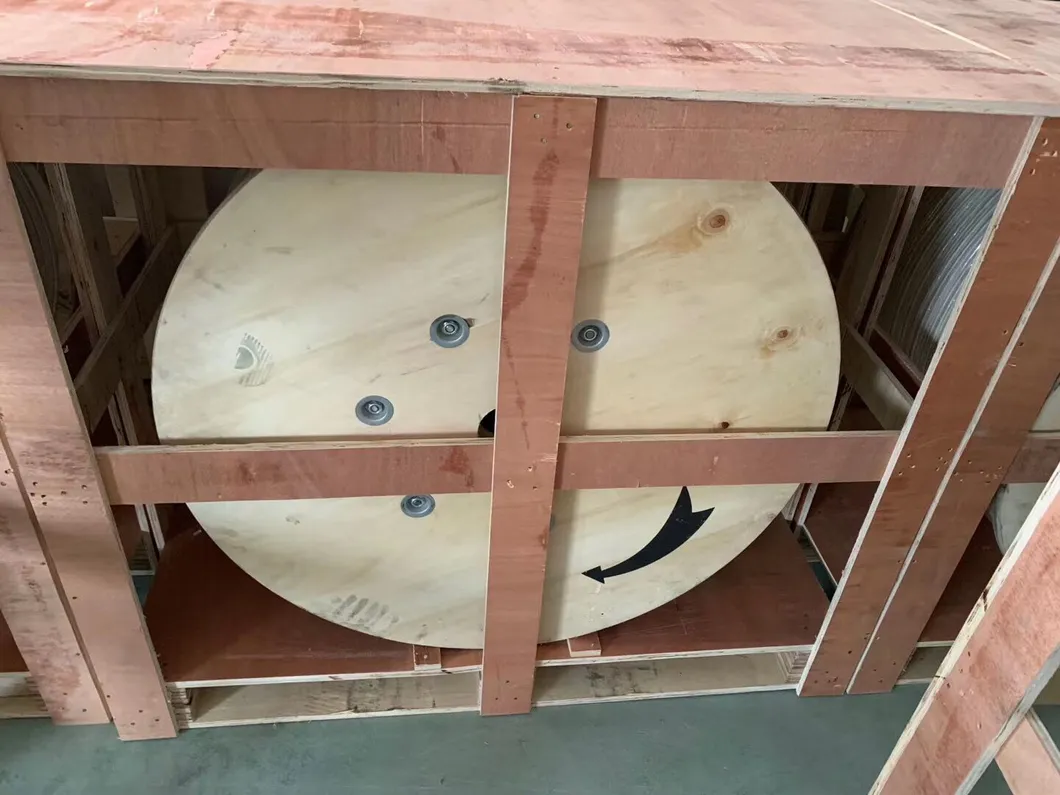

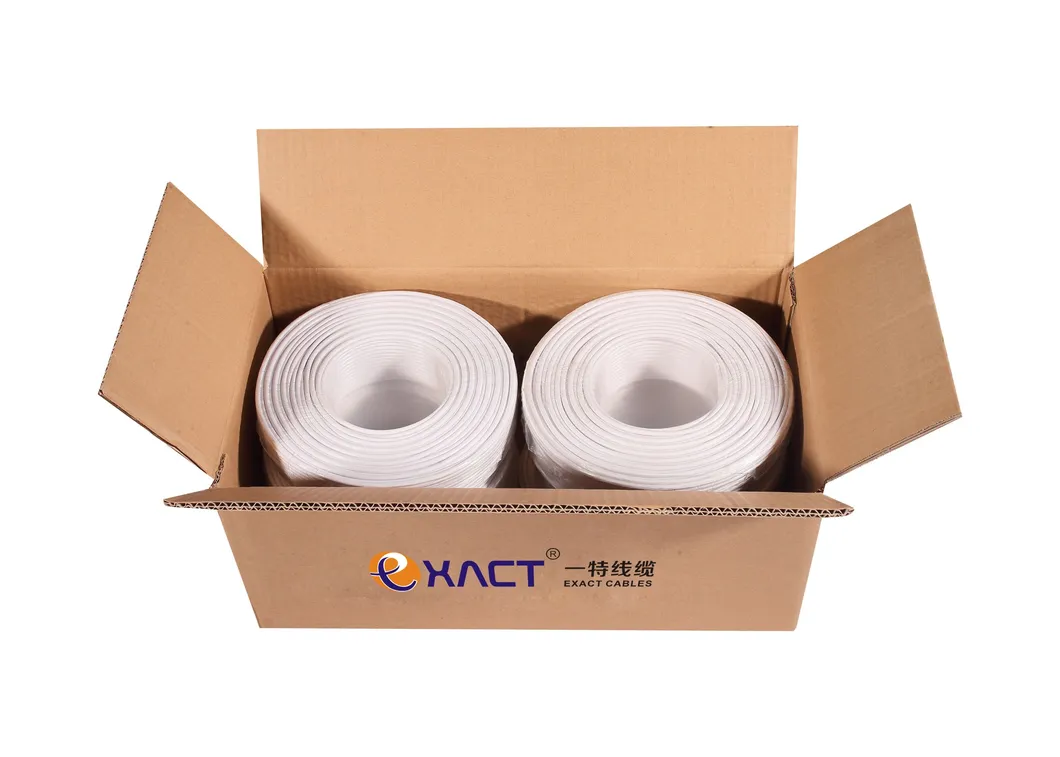

              PACKING:

              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable



              TRADE SHOW

              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable

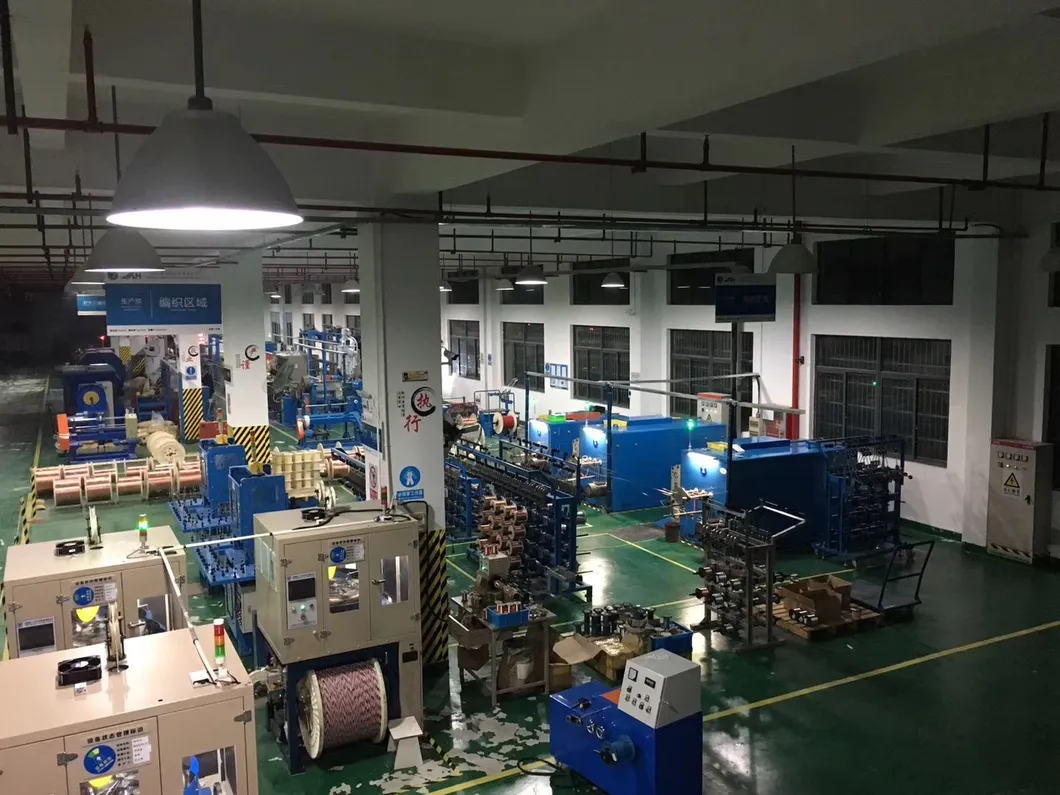

              WORKSHOP & OFFICE

              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable
              Communication Cable CCTV CATV CPR Eca RG11 PVC Over Jacket CCTV Coaxial Cable



              QUALITY POLICY
              Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following:

              • Maintain the ISO 9001 Quality Management System
              • Continual review and improvement of the effectiveness of the Quality Management System
              • Provide all necessary resources to manufacture quality cable
              • Create a safe and technologically advanced working environment
              • Respect for the environment in which we operate
              • Training and communication to keep employees informed and involved
              Every employee has the responsibility to ensure that these requirements are met.




              CERTIFICATIONS:


              COMPANY INFOMATION:
              We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industry in China. We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.

              Our factory is located in zhejiang Ningbo which is a beautiful port city.We have very advanced testing machines,including Agilent and HP analyzer.We carefully test cables under ISO9001-2000 quality management before shipping to the customers.And our quality is always reliable.

              Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.




              FAQ:
              Q1: What kind of cable do you produce?
              A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
              We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

              Q2: What's your MOQ? Can you offer free samples?
              A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

              Q3: What's your delivery time?
              A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

              Q4: What's your payment term?
              A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

              Q5:What's your trade term?
              A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

              Q6: Where is your factory located? How can I visit there?
              A:Our factory is located in Ningbo City, Zhejiang Province, China, about 30 minutes away from Ningbo Lishe Airport .All our clients, from home or abroad, are warmly welcome to visit us!
