Coax Jumper Cable LMR400 with N/ TNC /SMA Connector for Signal Booster
Coax Jumper Cable LMR400 with N/TNC/SMA Connector for Signal BoosterApplication: Wireless Communications Systems DAS Mobile Antennas Cellphone Signal RepeatersFeatures: 50 Ohm Good shielding effectiveness 0 - 6GHz Excellent performance at high frequency Replacement for RG8, 7D-FB, 8D-FB. REACH/RoHS ......
Send Inquiry
Product Description

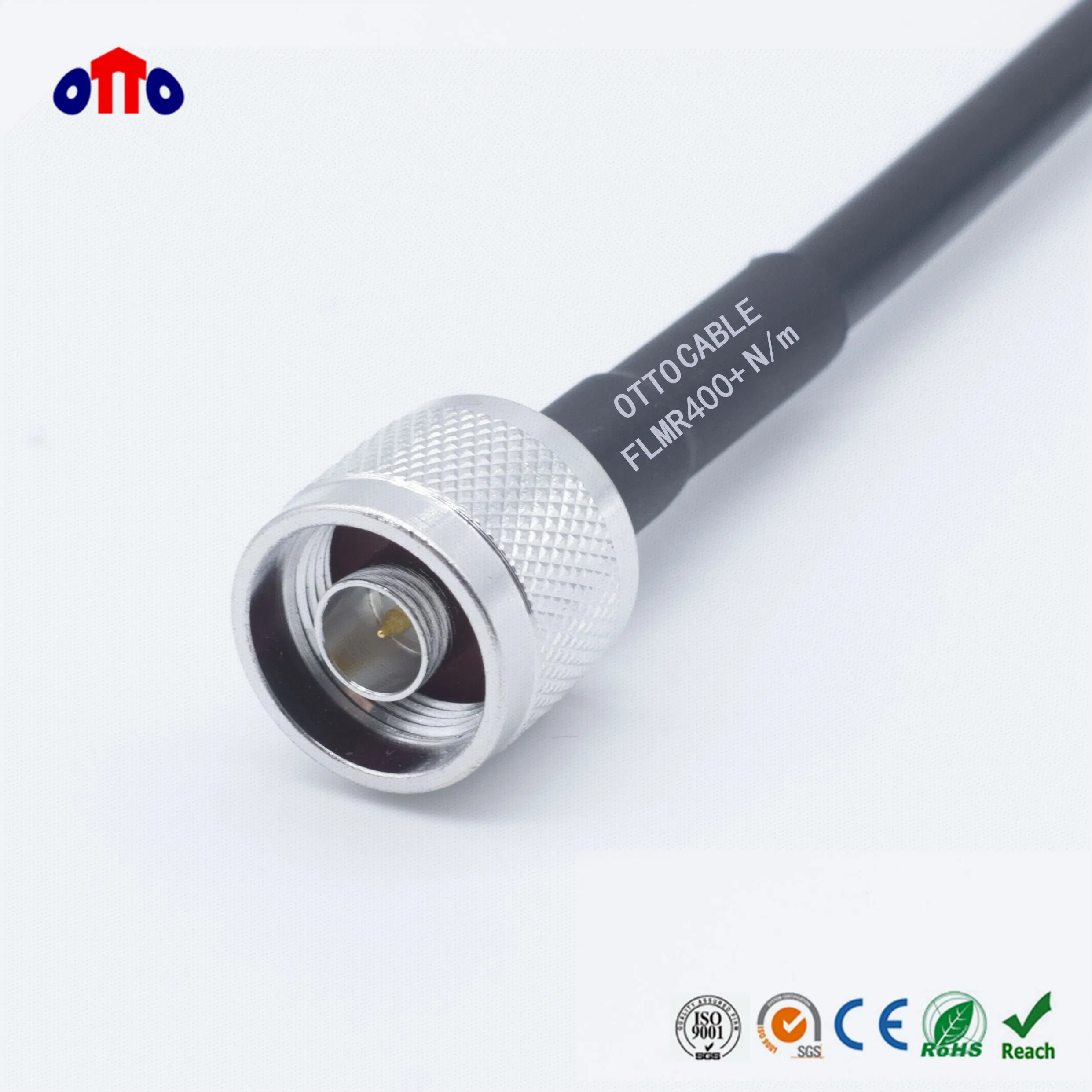

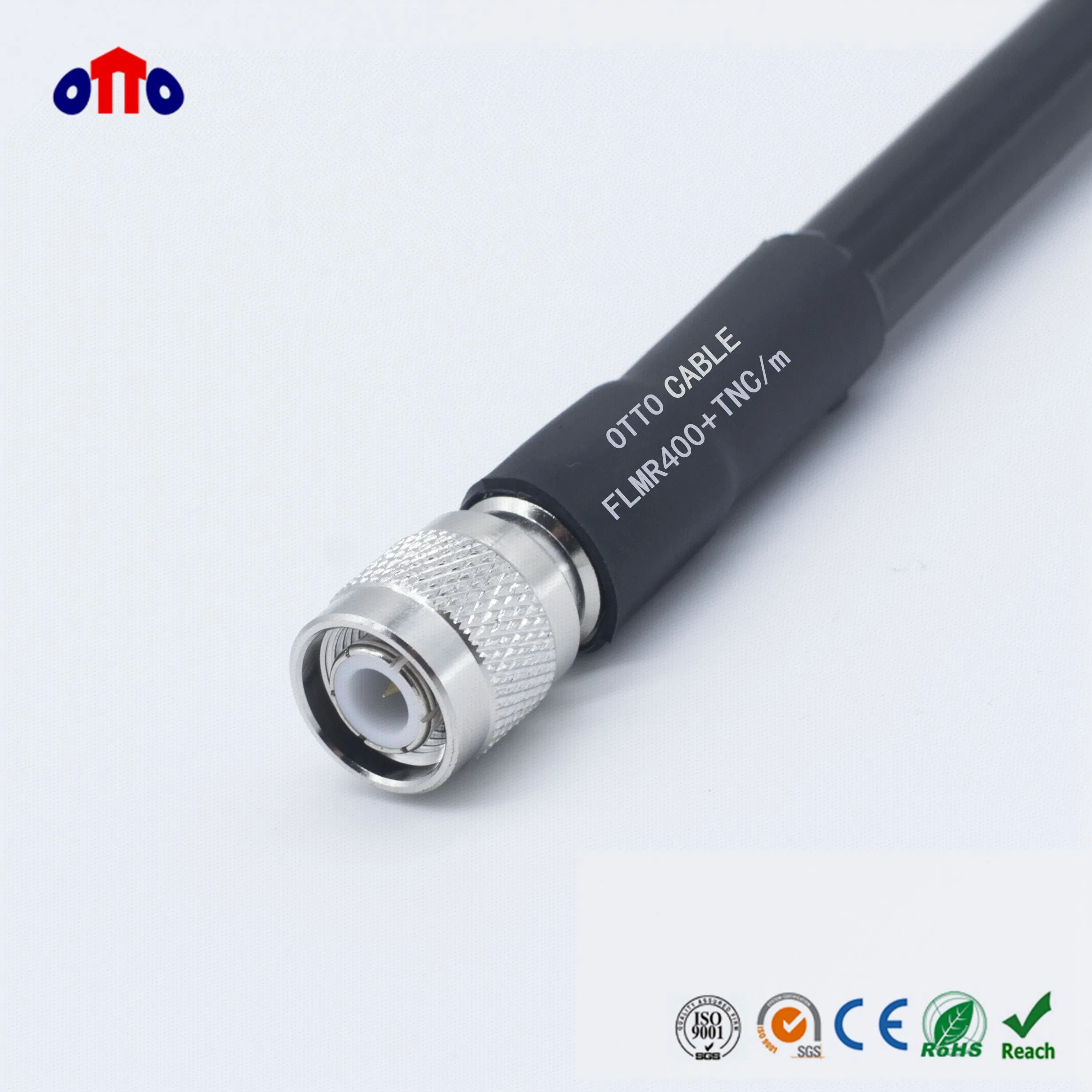

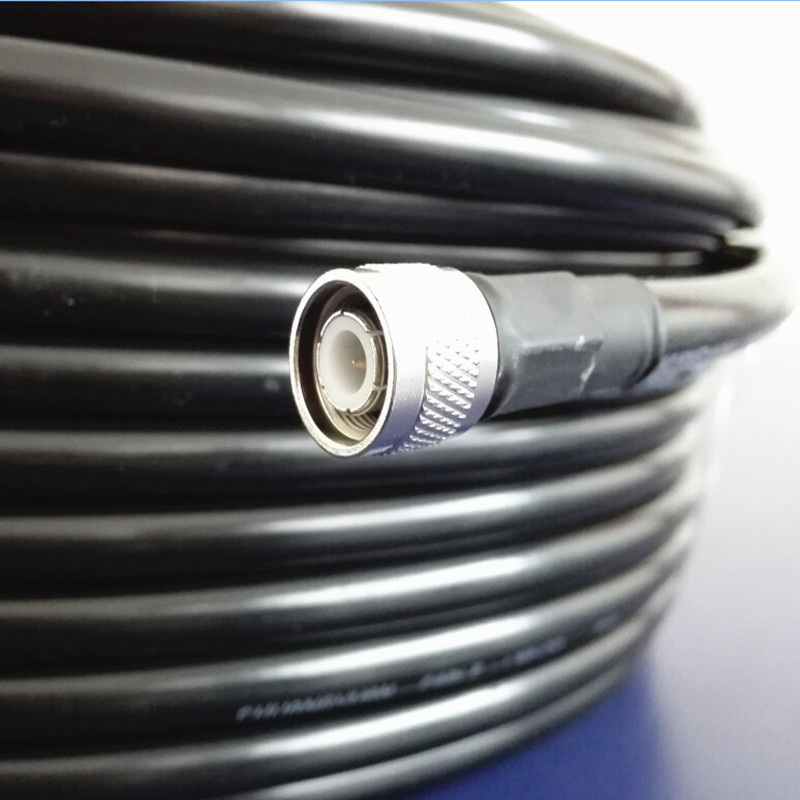

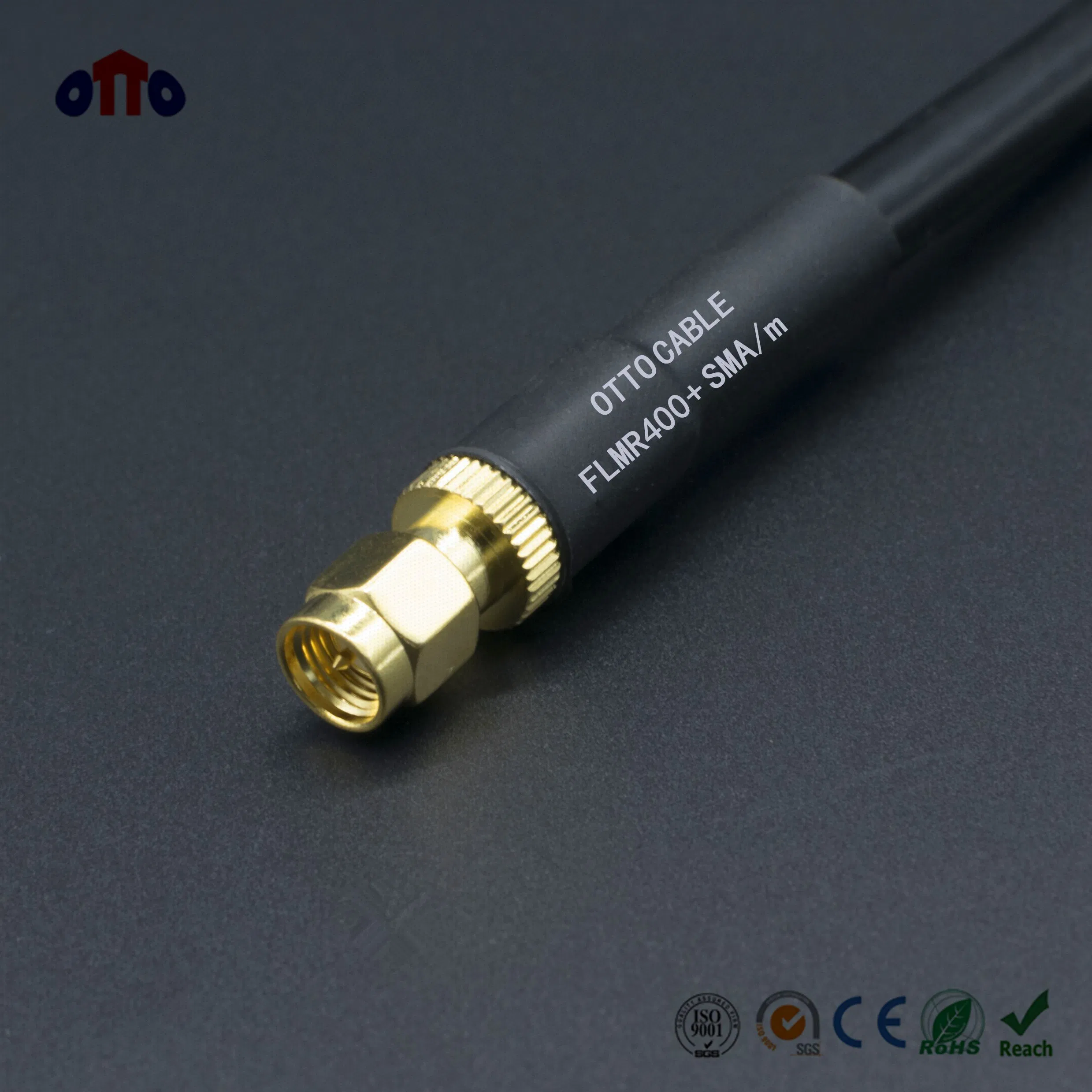

Coax Jumper Cable LMR400 with N/TNC/SMA Connector for Signal Booster
Application:
• Wireless Communications Systems
• DAS
• Mobile Antennas
• Cellphone Signal Repeaters
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Replacement for RG8, 7D-FB, 8D-FB.
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube
Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Copper Clad Aluminum Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC | 2.74 7.24 7.39 N/A 10.30 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) Voltage With Stand Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 78.4 85.0 ≥18 ≥90 2000.0 -20 to +85 -20 to +85 Min. 200 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 150 450 900 1500 1800 2000 2500 | 5.6 9.7 13.8 18.0 20.1 21.6 24.5 |
