China CCS 18% CCTV Cable Rg58 Coaxial Cable with UL/ETL/CPR/CE/RoHS/Reach Approved

Product Description

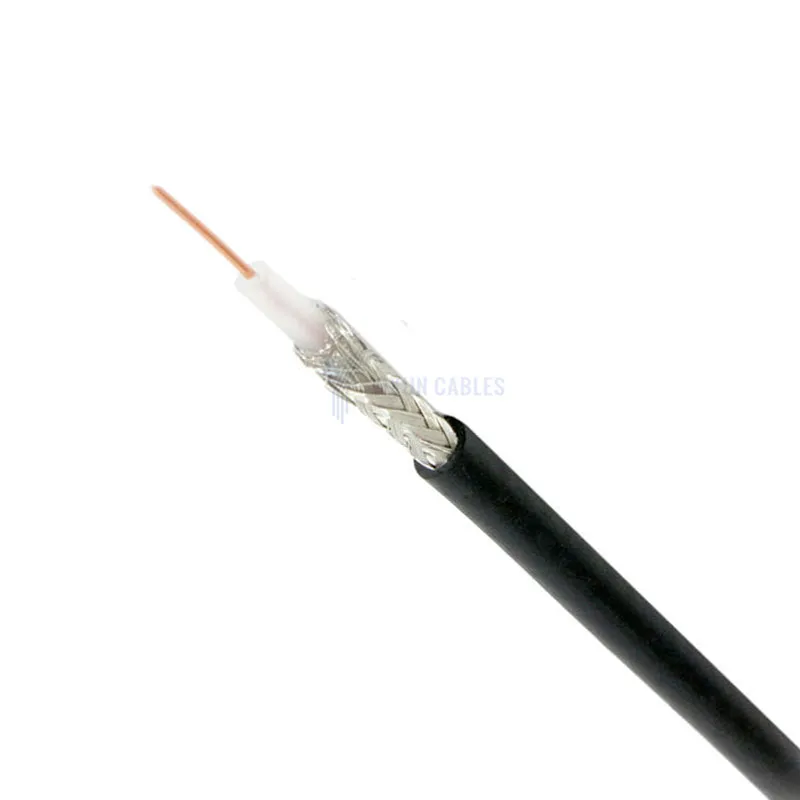

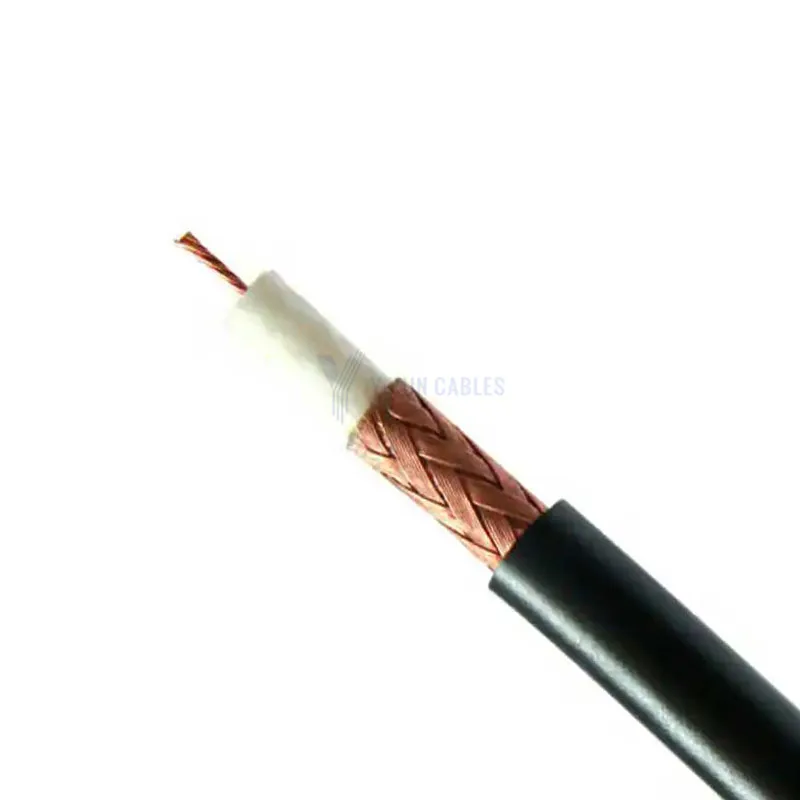

50 Ohm Rg58 Coaxial Cable

Description
Coaxial cable is an electrical cable consisting of a centre conductor wire, coated by PE or Foamed PE insulation, surrounded by cylindric conducting sheath, usually surrounded by a final insulating layer. It is used as a high-frequency transmission line to carry a high-frequency or broadband signal. As to lansan,mainly supplying the most common coaxial cable in use including RG8,RG58 of 50ohm impedance, RG6 ,RG11, RG59 of 75ohm impedance.

Application
50 ohm coaxes, used in radio transmission and computer networks, RG-8 being a rather large cable.

Note
1) Center conductor:Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil:Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil,
And double non-bonded Al-foil are available;
3) Braiding wire:AL, Bare Copper and Tinned Copper available;
4) Braiding wire diameter:0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;
5) Braiding net:80, 96, 120,128 ,144 and more available;
6) Braiding coverage:Between 80- 97% available;
7) PVC jacket of Flame retardant ,UV

Construction Characteristics

RG Series	Center Conductor	Dielectric	Foil Shield	Braid Shield	Foil Shield	Braid Shield	Jacket	Messenger
RG58	0.81mm or 19X0.18 mm BC or TC	2.95 mm Solid PE	Non	BC or TC 95% Coverage	Non	Non	4.95mm PVC or PE	Non
RG8/U	2.74 mm BCCA or BC	7.24mm Fomaed PE	AL Foil Bonded	TC 90% Coverage	Non	Non	10.2mm PVC or PE	Non
RG213	7X0.724mm BC	7.24mm Solid PE	Non	BC 96% Coverage	Non	Non	10.2mm PVC or PE	Non
RG214	7X0.75mm BC	7.24mm Fomaed PE	Non	BC 96% Coverage	Non	BC 96% Coverage	10.8mm PVC or PE	Non

Technical Performance
Impedance:50+/-2 Ohm
Velocity of Propagation:66%
Capacitance:93.5pF/m
Return Loss:23dB min
Attenuation:[@68 F.(20 C) ] dB/100meters
30MHz:6.30dB 1500MHz:45.60dB
50MHz:8.10dB 1800MHz:50.10dB
150MHz:14.10dB 2000MHz:53.00dB
220MHz:17.10dB 2500MHz:59.50dB
450MHz:24.60dB 5800MHZ:93.10dB
900MHz:35.00dB
