Product Description

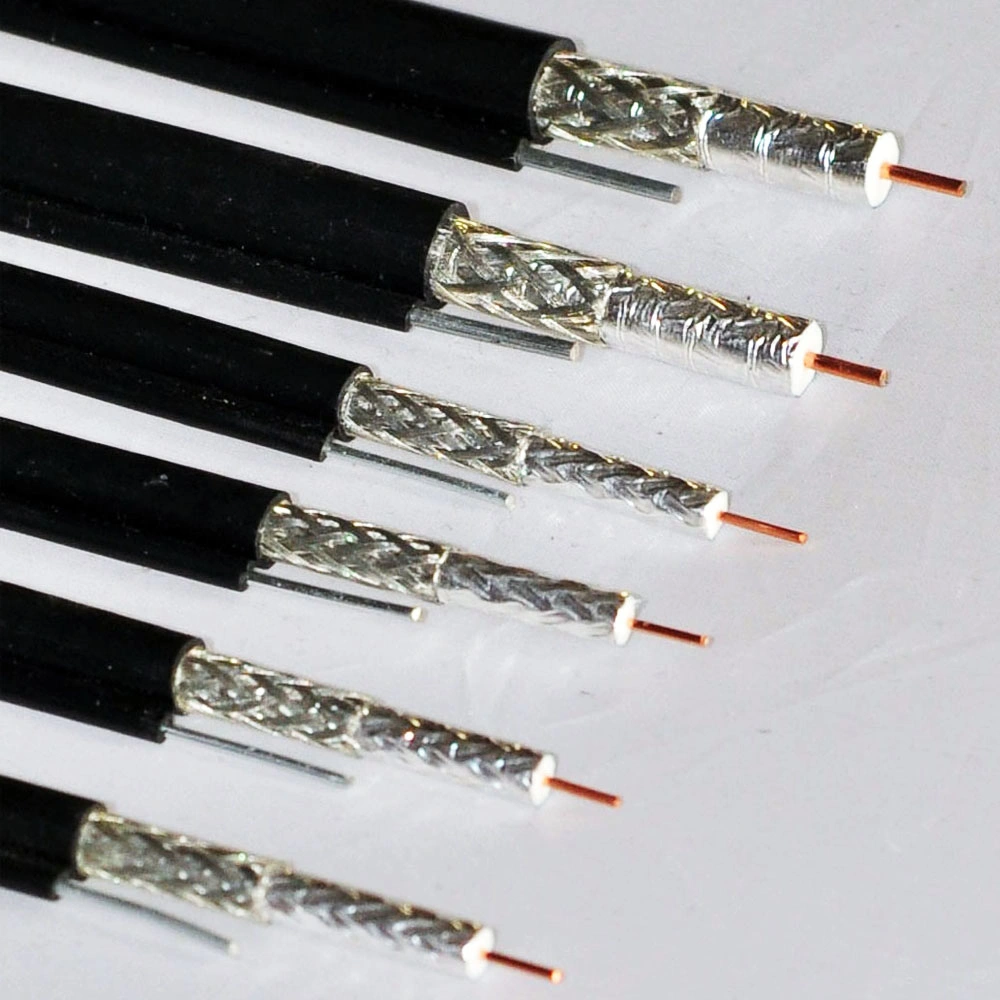

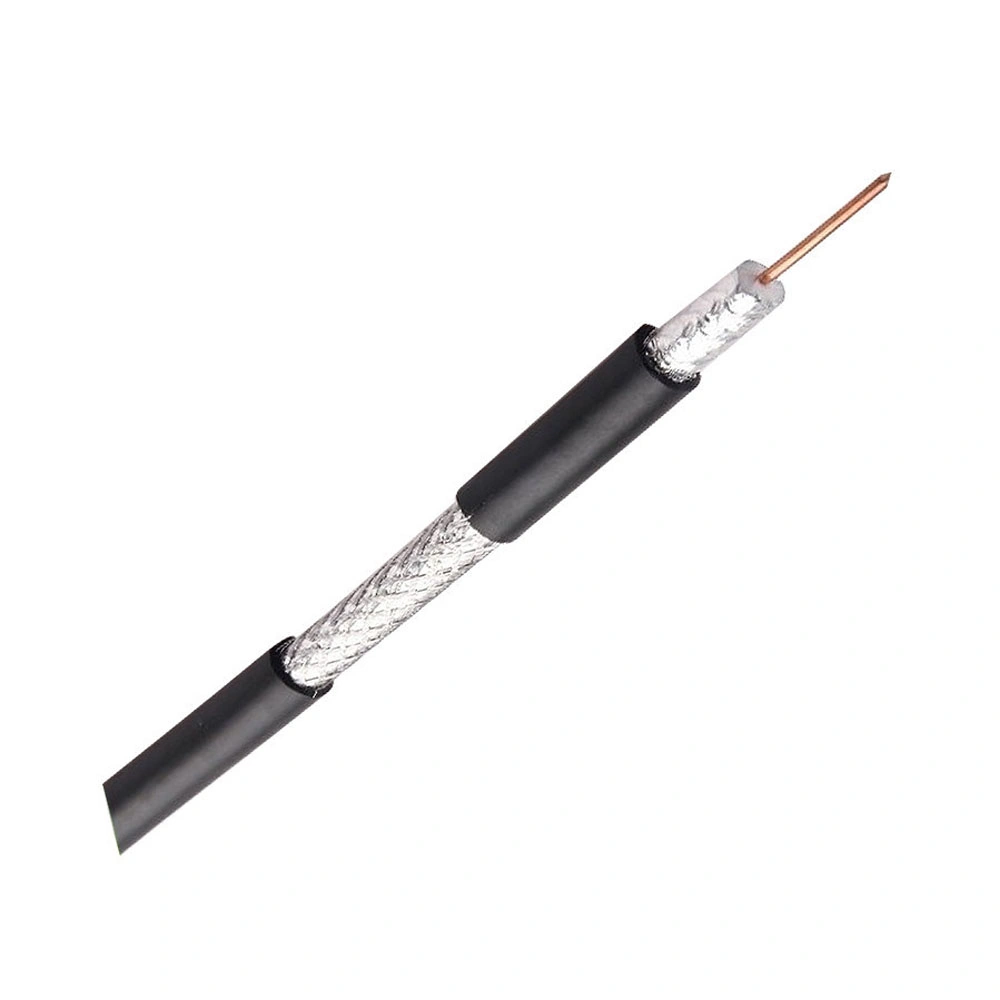

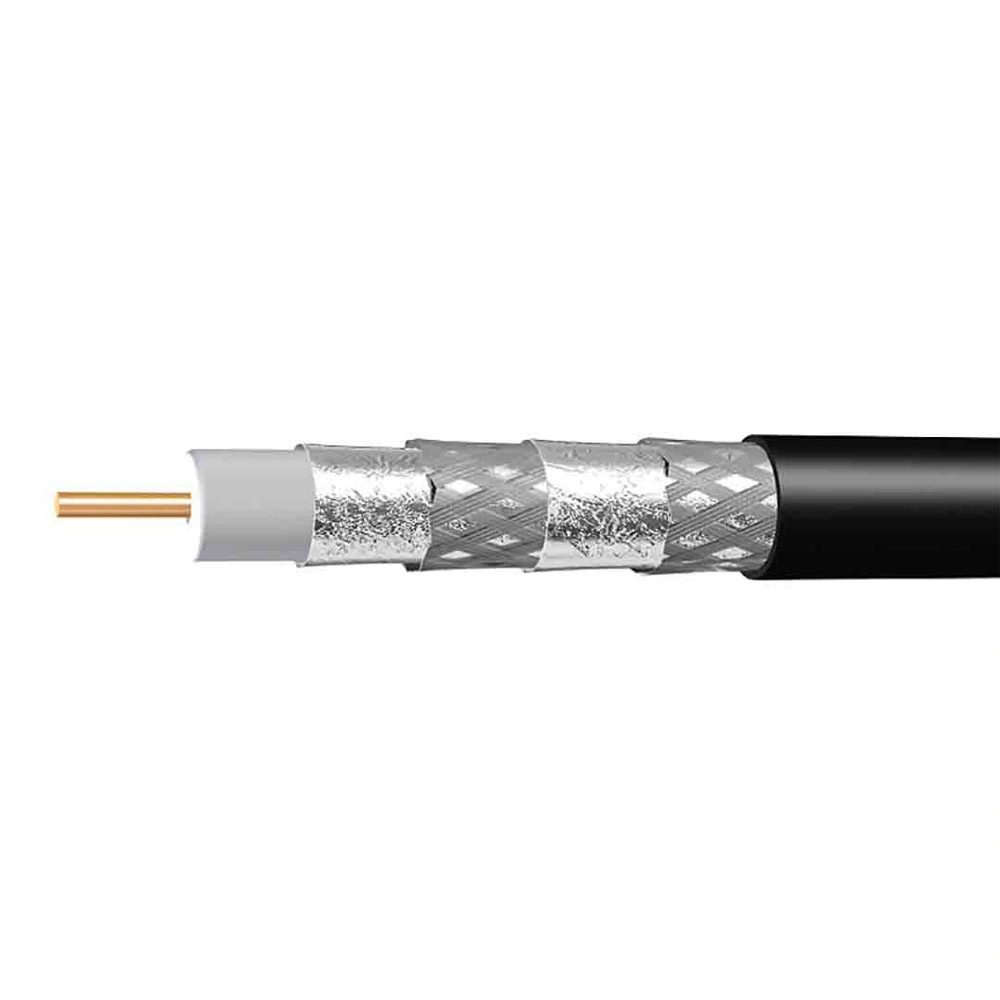

CATV Triple-shield RG6 Distribution Coaxial Cable with Messenger

Description
RG6 Standard Coaxial Cable with bonded foil, PVC jacket and messenger, center conductor is copper clad steel, for 75ohm CATV drop cable. Package quantity: 305m/Reel

Physical dimensions

ITEM	RG6S	RG6SM	RG6T(M)	RG6Q(M)
Center conductor	1.02mm + 0.01mm	1.02mm + 0.01mm	1.02mm+ 0.01mm	1.02mm+ 0.01mm
Dielectric	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE
Shield	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil
Braid coverage	60%~90%	60%~90%	60%~90%	60%~90%
Shield			Al Foil	Al Foil
Braid coverage				40%~60%
Jacket	6.91+0.05mm PVC	6.91+0.05mm PVC	7.06+0.05mm PVC	7.54+0.05mm PVC
Messenger		1.30mm	1.30mm	1.30mm

Characteristics

Nominal Impedance(ohm)		75±3
Nominal Velocity of Propagation(%)		88
Nominal Capacitance(pF/m)		53±3
Sparker Test(AVC)		4000
SRL(dB)		>20
Attenuation [68o F(20o C)]	Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
	55	1.60	5.25
	187	2.85	9.35
	300	3.55	11.64
	450	4.40	14.43
	600	5.10	16.73
	750	5.65	18.54
	865	6.10	20.01
	1000	6.55	21.49

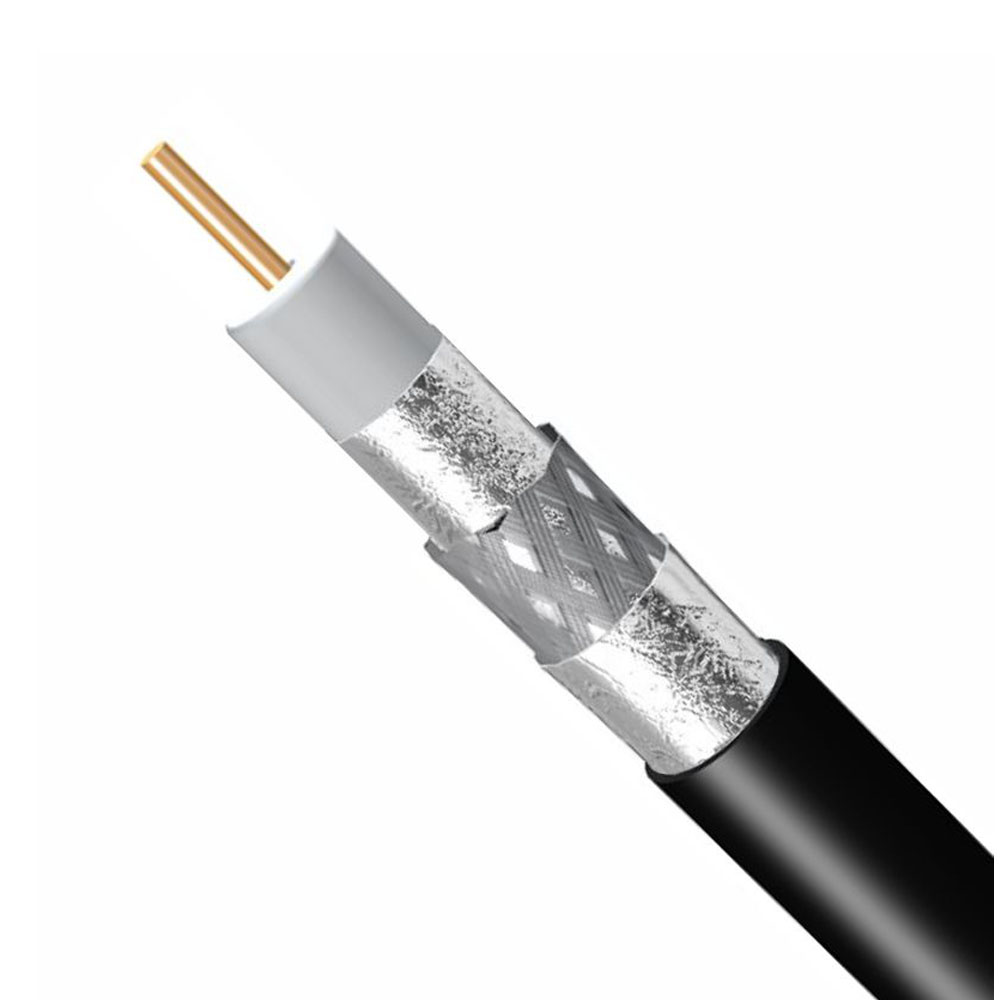

Description:

1. Center conductor: Φ 0.04(1.02mm) solid copper or CCS(18%)

2. Dielectric: Φ 0.18(4.57mm)foam PE

3. Shield: Bonded AL Foil 0.0016(0.04mm)

4. Braid coverage: 60~90%

5. Jacket: Φ 0.28 (7.06mm) PVC(70)

6. Jelly/ADP: Per customer special requirement

Electrical performance

1. Sparker Test: 4000VAC

2. Impedance: 75+/-3 Ohm

3. Capacitance: 50+/-3pF/m

4. Velocity of Propagation: 85%

ITEM	RG6S	RG6SM	RG6T(M)	RG6Q(M)
Center conductor	1.02mm + 0.01mm	1.02mm + 0.01mm	1.02mm+ 0.01mm	1.02mm+ 0.01mm
Dielectric	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE	4.57+ 0.05mm Foam PE
Shield	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil	Bonded AL Foil
Braid coverage	60%~90%	60%~90%	60%~90%	60%~90%
Shield			Al Foil	Al Foil
Braid coverage				40%~60%
Jacket	6.91+0.05mm PVC	6.91+0.05mm PVC	7.06+0.05mm PVC	7.54+0.05mm PVC
Messenger		1.30mm	1.30mm	1.30mm
