China Cabo De Rede Cftv Cat5e 2pares Cu Risun LAN Cabo

Product Description

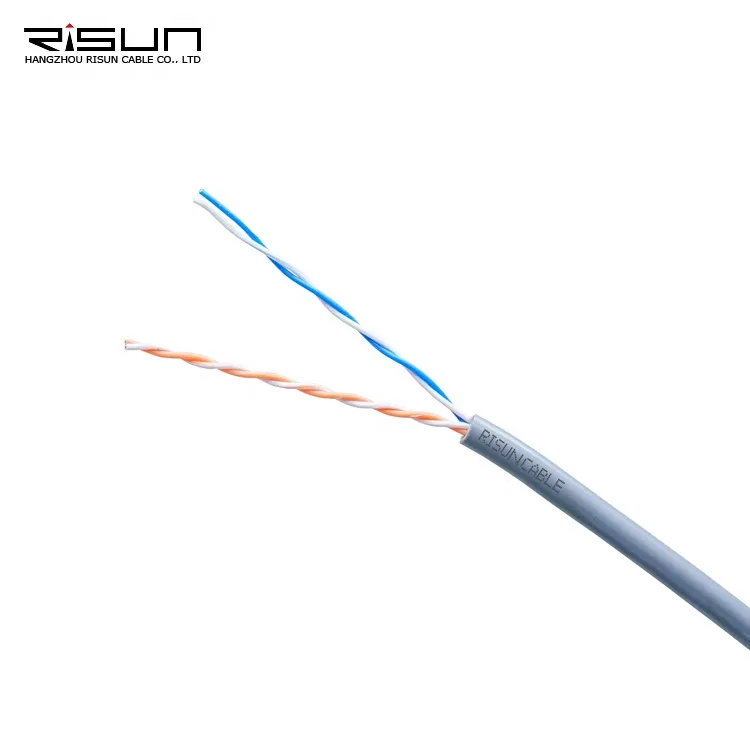

Cabo De Rede Cftv Cat5e 2pares cu Risun lan Cabo

Cabo De Rede Cftv Cat5e 2pares Cu Risun LAN Cabo

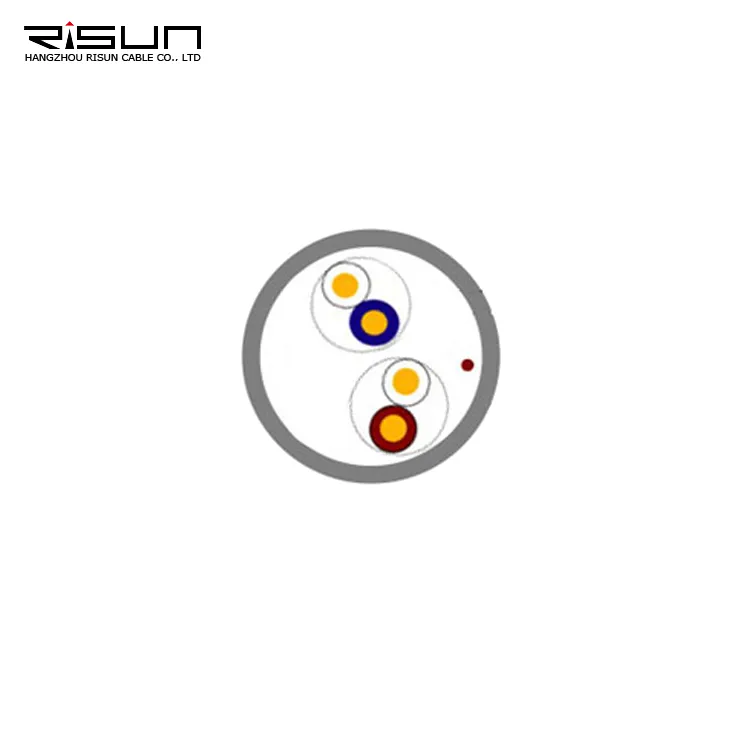

1. Conductor: 0.50±0.01mm(24AWG) Bare copper
2. Insulation: 0.90±0.03mm HDPE
3. Cores/Pairs: 2/1 up to 100/50
4. Sheath: According to pairs PVC/LSOH/PE
Options: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties

Elongation	Min. 300%
Temperature Range		-20 up to +75C
Tensile strength		Min. 1.68Kg/mm2

Electrical Properties

Conductor Resistance	Max. 9.38 ohm/100m
Resistance Unbalance	Max. 2%
Insulation Resistance	150 ohm/KM
Mutual Capacitance	Max. 5600pF/100m
Capacitance Unbalance	Max. 330pF/100m
Impedance	100+/-15 ohm
Spark Test	2000V
Velocity of Propagation	0.67

Technical Performance

Attenuation	RL	Next	PS Next
(Mhz)	(dB/100M)	(dB)	(dB)	(dB/100m)
1MHz	2	20	65.3	63.5
4MHz	4.1	23	56.3	54.2
8MHz	5.8	24.5	52.4	50.5
10MHz	6.6	25	51.3	49.2
16MHz	8.2	25	49.3	47.4
20MHz	9.3	25	48.8	46.9
25MHz	10.4	24	45.3	43.4
31.25MHz	11.7	23	43	41.8
62.5MHz	17	21	39.2	37.2
100MHz	22	20	36.3	34.4

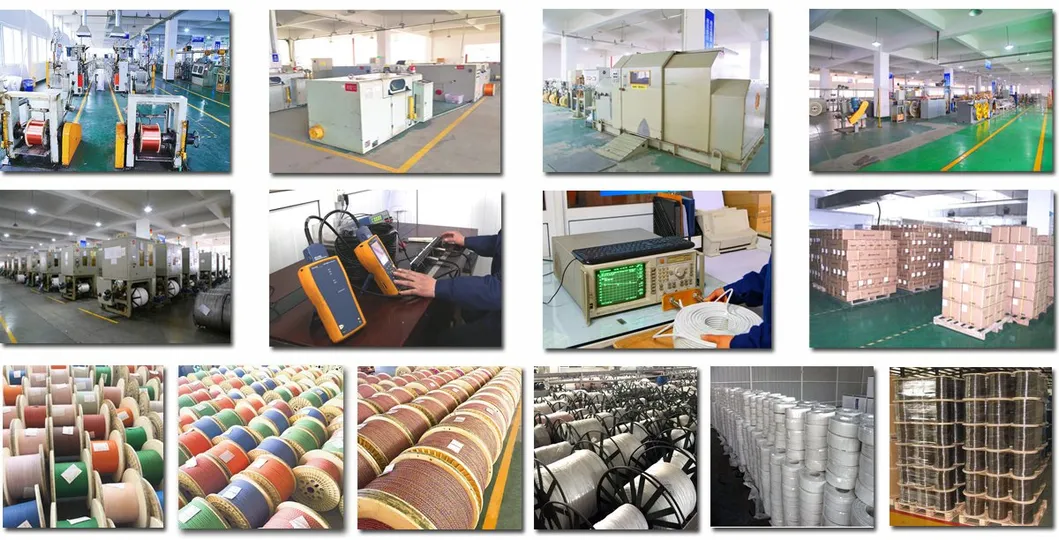

Hangzhou Risun is Specializes in manufacturing and trading high quality of LAN CABLE,ALARM CABLE,BUS CABLE ,CONTROL CABLE,TELEPHONE WIRE and COAXIAL CABLE in China since year of 2007.

Now we are serving customers more than 40 countries and over hundred customers. We are an ISO certified company and our products approved by CE, RoHS, ETL, CPR.

Risun products include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable ,bus cable ,control cable and telephone cable, audio cable, Jumperwire, RG59 with two power cable,RG6, RG11, RG58/U, RG213etc. Our brand is RISUN, and we also accept OEM serivce.

Cat7 10g Indoor/Outdoor Dual Shielded S/FTP Bulk Ethernet Cable

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.

Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is 5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.

Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color

Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?

A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.

Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.
