AWG27 CCA Wire for Communication Cables
Enameled Copper Clad Aluminum WireSpecifications:Diameter:0.12mm-8.00mmThermal Class: 130/155/180/200/220 centigradeApplication:Motor (including household electrical),high frequency transformers,transformer and inductor electromagnetic coils, voice coil, CD-rom special wire, magnet wire of display d......
Send Inquiry
Product Description

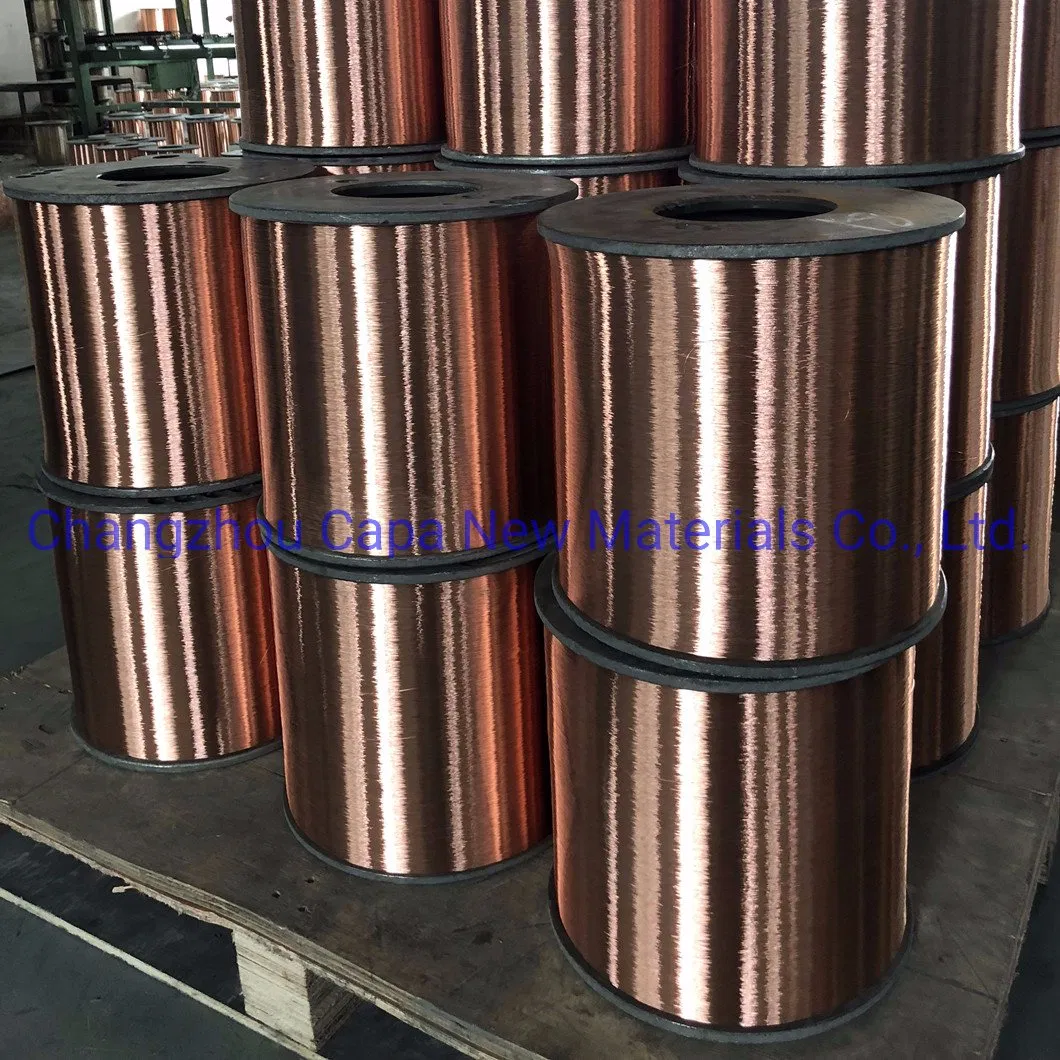

Enameled Copper Clad Aluminum Wire
Specifications:
Diameter:0.12mm-8.00mm
Thermal Class: 130/155/180/200/220 centigrade
Application:
Motor (including household electrical),high frequency transformers,transformer and inductor electromagnetic coils, voice coil, CD-rom special wire, magnet wire of display defection coil.
a) Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments, speakers.
b) Automotive sensors and coils as relais and ignition coils.
c) Generators, dry-type or oil-immersed.
d)Anti-explosion motor, air-conditioner compressor, washing machine
e) Military and space applications.
Advantages:
Excellent thermal stability
Excellent dielectric and mechanical properties
Very good chemical resistance to common solvent and coolants.
Better sliding during coil insertion in slots
High resistance to abrasion
Chemically resistant
Details:
Enameled CCA wire is a new magnet wire with CCA core, It combines the good conductivity of Copper and light weight of Aluminum. can greatly reduce the cost of winding wire. ECCA with the Copper layer is not easy to oxidation and easy to weld. Our company has more than100 sets of high-speed drawing machines, annealing stoves with vacuum tube and enameled machines. we also have the solderability test instrument, automatic spring back angle test instrument and dielectric loss test instruments to ensure the quality in each step. The output of ECCA wire is 300Tons per month. Specification is:0.06-2.5mm.
Model: 130ºC PEWAL, 155ºC UEWAL, 180ºC/200ºC EIWAL,220ºCEI/AIWA.

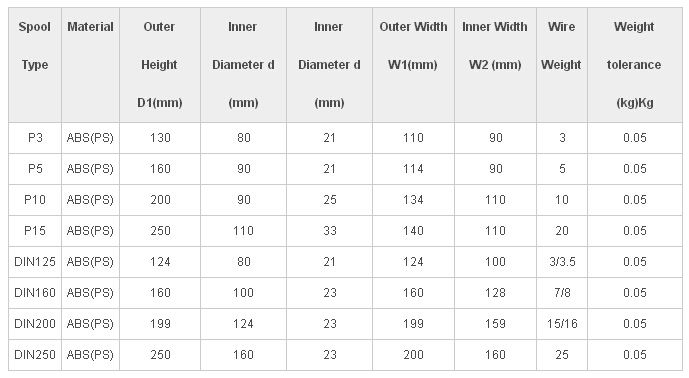

Normal package: Spool size PT4, PT10, PT15, PT25.
Data sheet
Copper Clad Aluminum Wire Main Technical Parameters
INTRODUCTION OF ENAMELED ROUND COPPER CLAD ALUMINUM WINDING WIRES
The picture of the factory:
Packing & Shipping (20GP can put in 15-23 tons)
Excellent packaging is part of the product: three-layer packaging protection, First protection:special dust-proof paper for inner package, Second protection: precision PVC film for sealing, Third protection: seven-layer corrugated shockproof paper box to prevent oxidation and damage during transportation and storage.
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
EDM Brass Cut Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, Brass EDM Wire,power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
Specifications:
Diameter:0.12mm-8.00mm
Thermal Class: 130/155/180/200/220 centigrade
Application:
Motor (including household electrical),high frequency transformers,transformer and inductor electromagnetic coils, voice coil, CD-rom special wire, magnet wire of display defection coil.
a) Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads, instruments, speakers.
b) Automotive sensors and coils as relais and ignition coils.
c) Generators, dry-type or oil-immersed.
d)Anti-explosion motor, air-conditioner compressor, washing machine
e) Military and space applications.
Advantages:
Excellent thermal stability
Excellent dielectric and mechanical properties
Very good chemical resistance to common solvent and coolants.
Better sliding during coil insertion in slots
High resistance to abrasion
Chemically resistant
Details:
Enameled CCA wire is a new magnet wire with CCA core, It combines the good conductivity of Copper and light weight of Aluminum. can greatly reduce the cost of winding wire. ECCA with the Copper layer is not easy to oxidation and easy to weld. Our company has more than100 sets of high-speed drawing machines, annealing stoves with vacuum tube and enameled machines. we also have the solderability test instrument, automatic spring back angle test instrument and dielectric loss test instruments to ensure the quality in each step. The output of ECCA wire is 300Tons per month. Specification is:0.06-2.5mm.
Model: 130ºC PEWAL, 155ºC UEWAL, 180ºC/200ºC EIWAL,220ºCEI/AIWA.
Normal package: Spool size PT4, PT10, PT15, PT25.
Data sheet
Copper Clad Aluminum Wire Main Technical Parameters
| Technical Characteristics | CCA Wire | ||||
| Clad type | Plated type | ||||
| 10H | 10A | 15H | 15A | ||
| Size range (mm) | 0.10-8.00 | 0.10-8.00 | 0.10-8.00 | 0.10-8.00 | 0.10-6.00 |
| Copper content (% by weight) | 25-31 | 25-31 | 32-40 | 32-40 | 10 |
| Tensile strength (Mpa) | ≥152 | 110-172 | ≥152 | 110-172 | 90-120 |
| Elongation (%) Min. | 1 | 5 | 1 | 5 | 5 |
| Conductivity (%) Min. at 20ºC | 62 | 62 | 64 | 64 | 62 |
| DC Resistivity (Ω.mm2/m) Max. at 20ºC | 0.02743 | 0.02743 | 0.02676 | 0.02676 | 0.02743 |
| Density (g/cm3) Min. | 3.32 | 3.32 | 3.63 | 3.63 | 2.85 |
INTRODUCTION OF ENAMELED ROUND COPPER CLAD ALUMINUM WINDING WIRES
| S/N | Product name | Product Models | UL certificate | Specification (mm) | Product standard | Product properties |
| 1 | Polyester Enameled Round Copper Clad Aluminum Wire ,Class 130 | 2PEW/130 PEW/130 | UL certificate passed | 0.08~3.00 | Q/320412 GBLZ 002-2010 | Good adhesive property of paint film |
| 2 | Modified Polyester Enameled Round Copper Clad Aluminum Wire,Class 155 | 2PEW(W)-1/155 PEW(M)-2/155 | UL certificate passed | 0.08~3.00 | Q/320412 GBLZ 002-2010 | High resistance to heat shock |
| 3 | Polyurethane Enameled Round Copper Clad Aluminum Wire,Class 130/155/180 | 3UEW, 2UEW,1UEW | UL certificate passed | 0.08~3.00 | Q/320412 GBLZ 002-2010 | Straight welding property High resistance to high frequency High rmoisture resistivity |
| 4 | Polyesterimide Enameled Round Copper Clad Aluminum Wire,Class 180 | 2EIW/180 EIW/180 | UL certificate passed | 0.08~3.00 | Q/320412 GBLZ 002-2010 | High resistance to heal shock Easy tinting |
| 5 | Polyesterimide/Polyamide-imide Enameled Round Copper Clad Aluminum Wire,Class 200 | 2EI/AIW/200 EI/AIW/200 | UL certificate passed | 0.08~3.00 | Q/320412 GBLZ 002-2010 | Resistance to refrigerant and solvent |

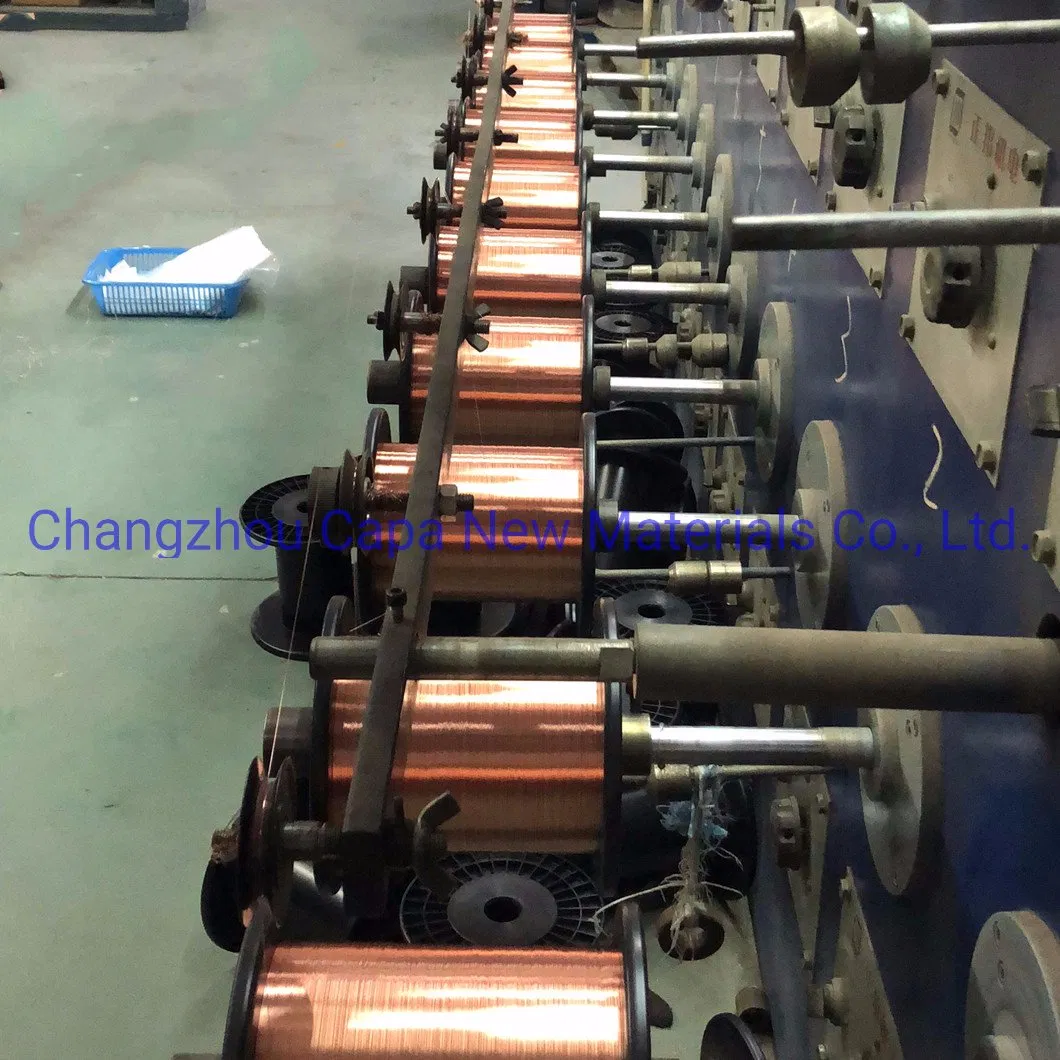

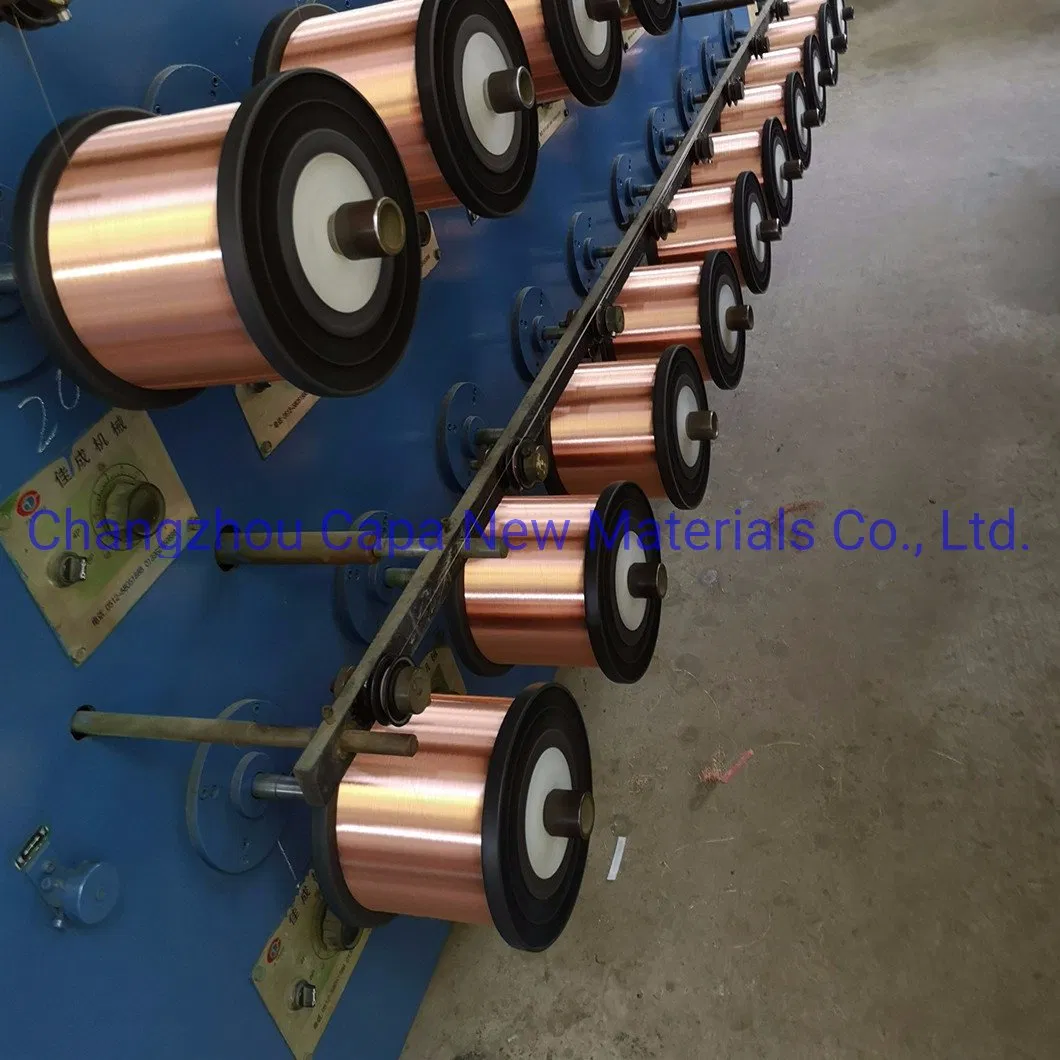

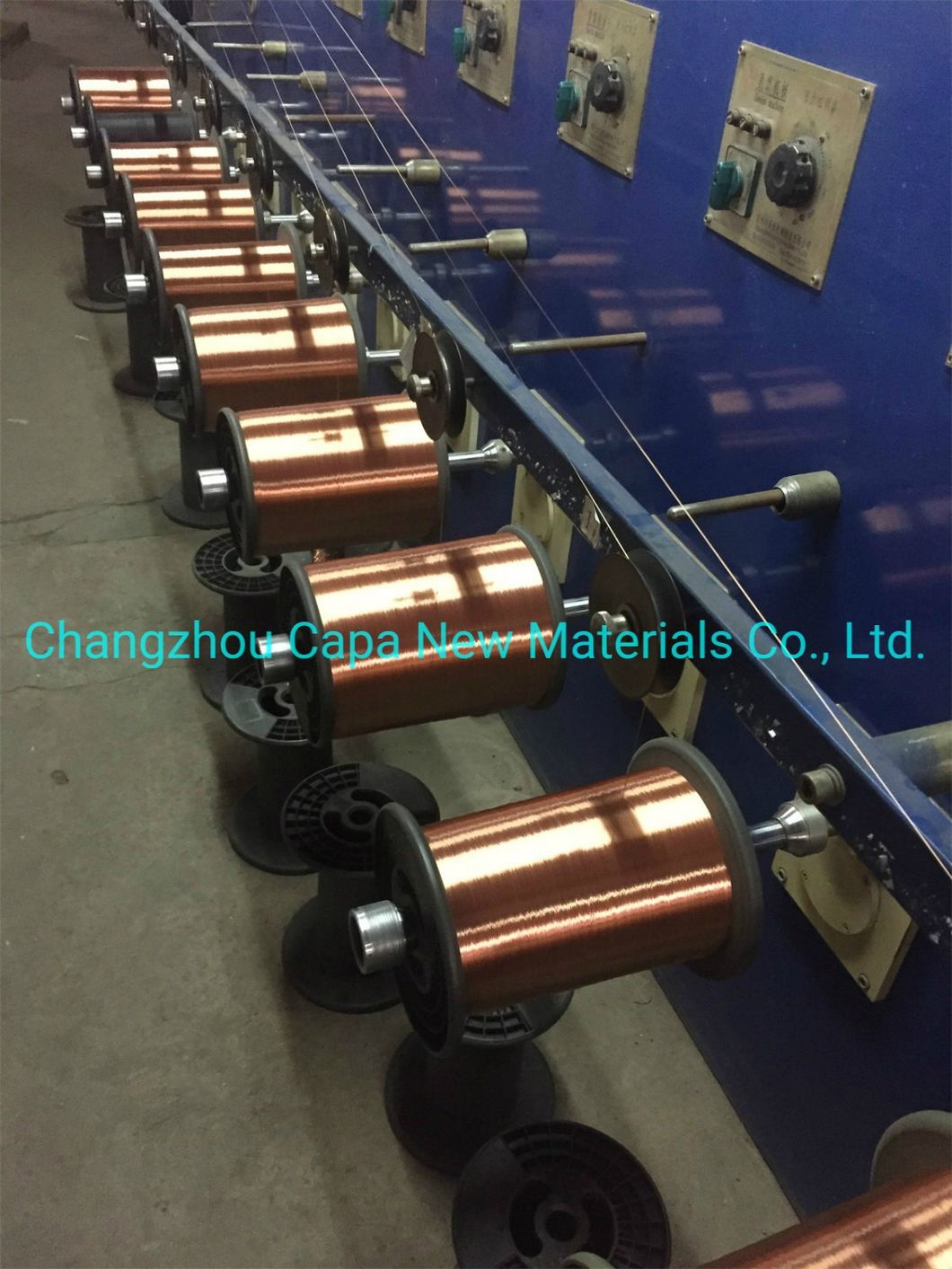

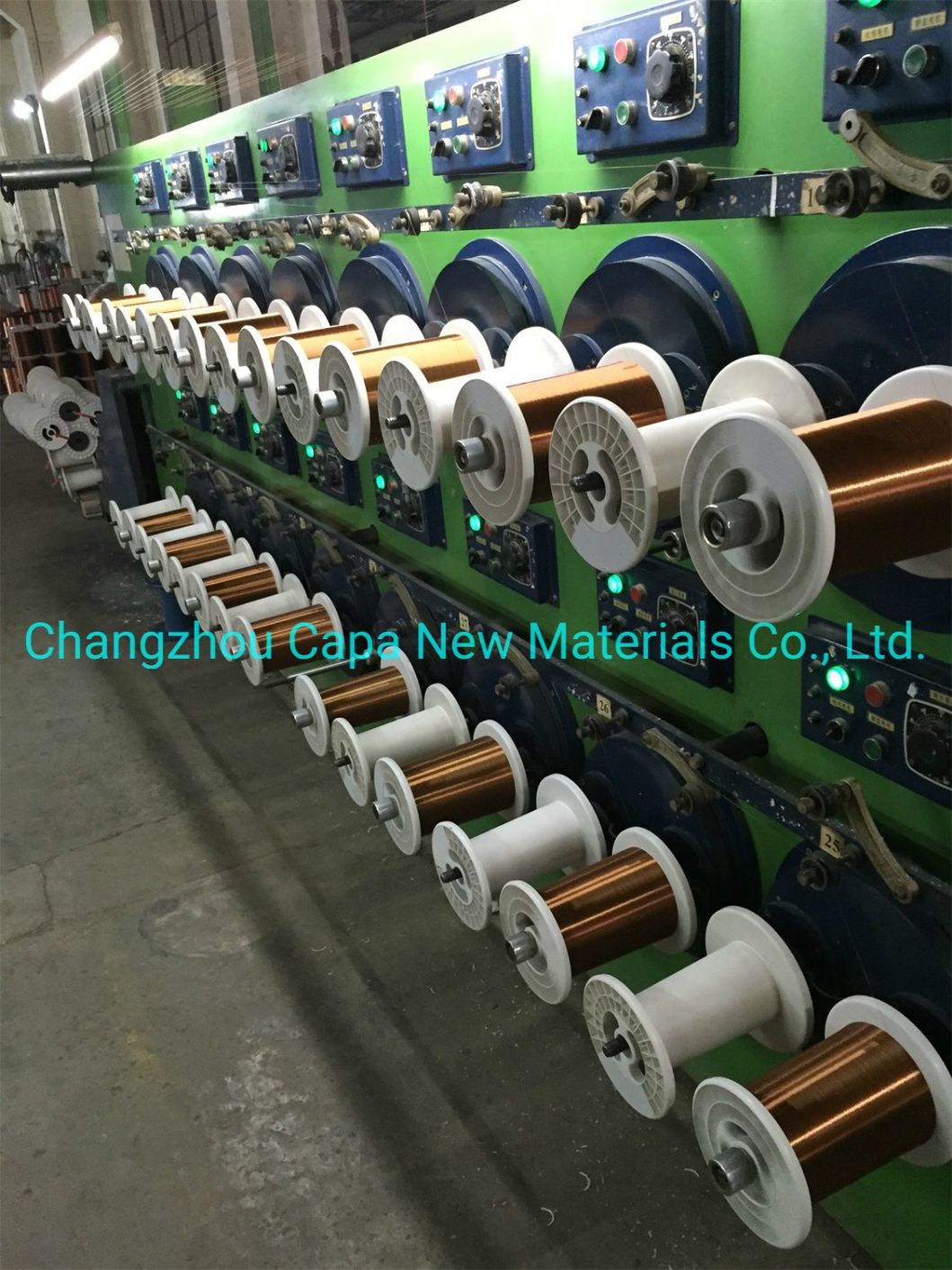

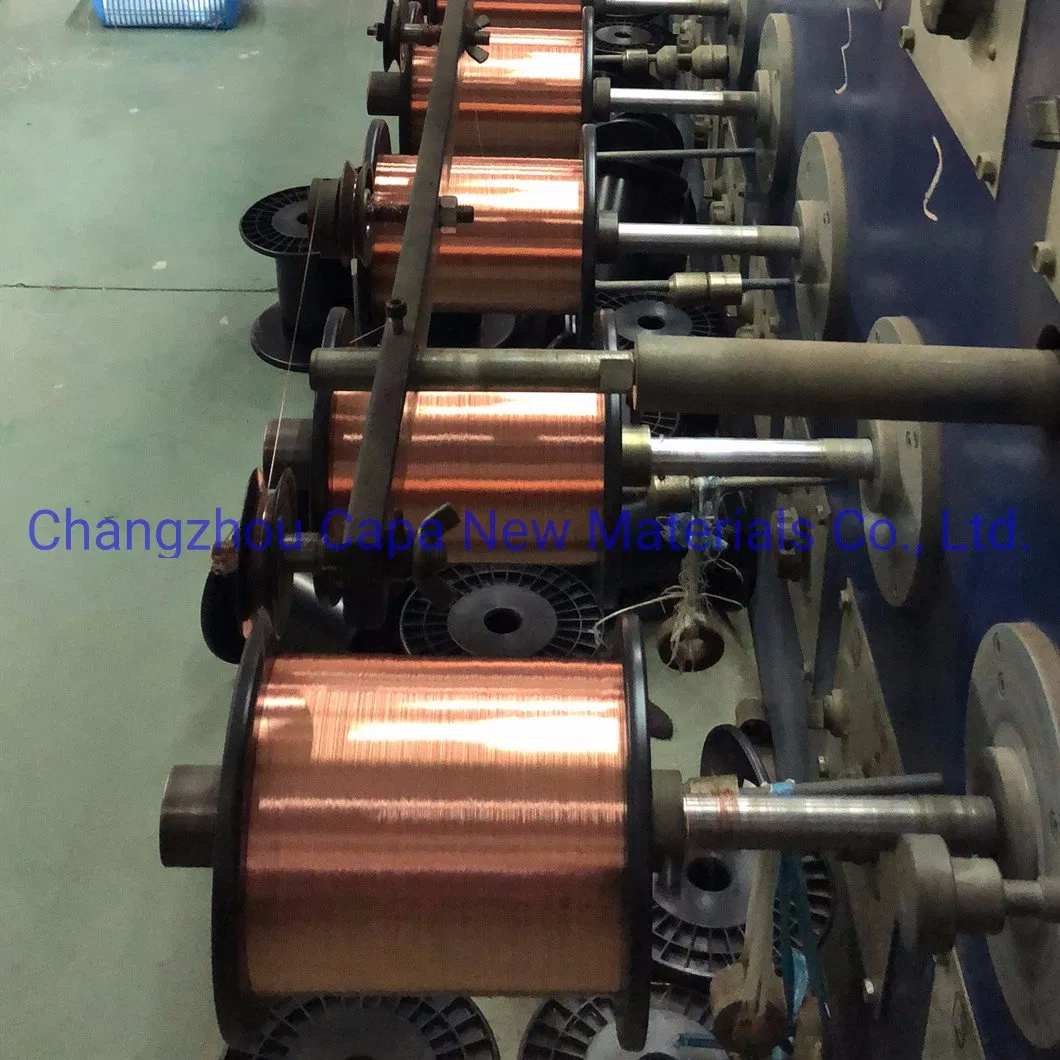

The picture of the factory:

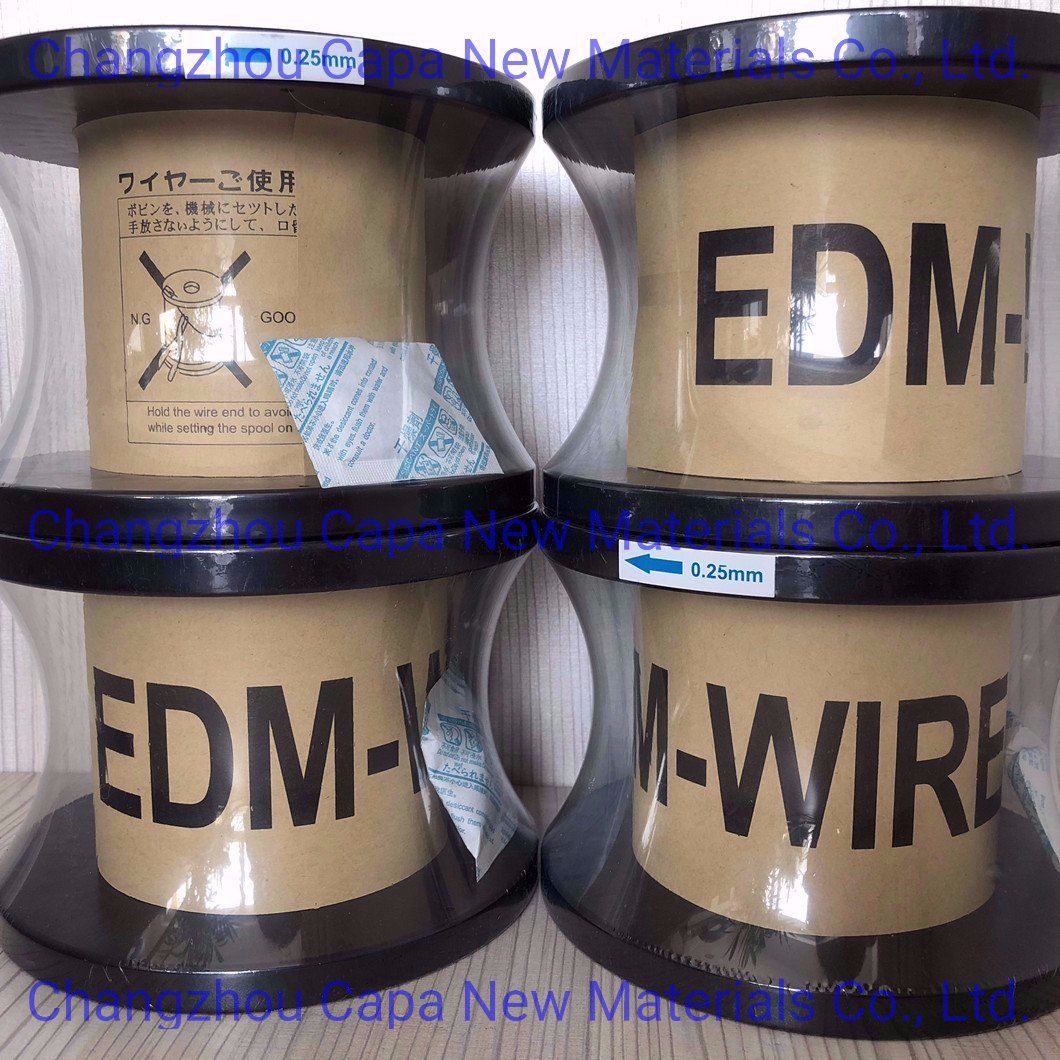

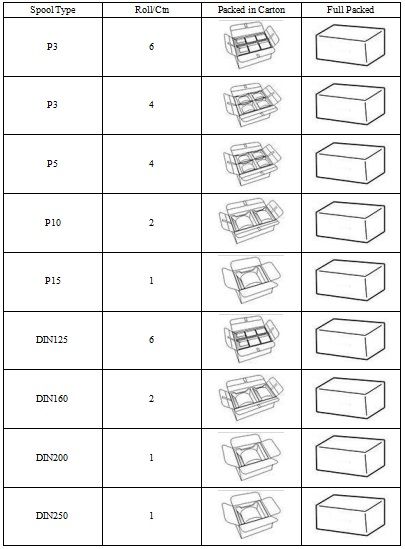

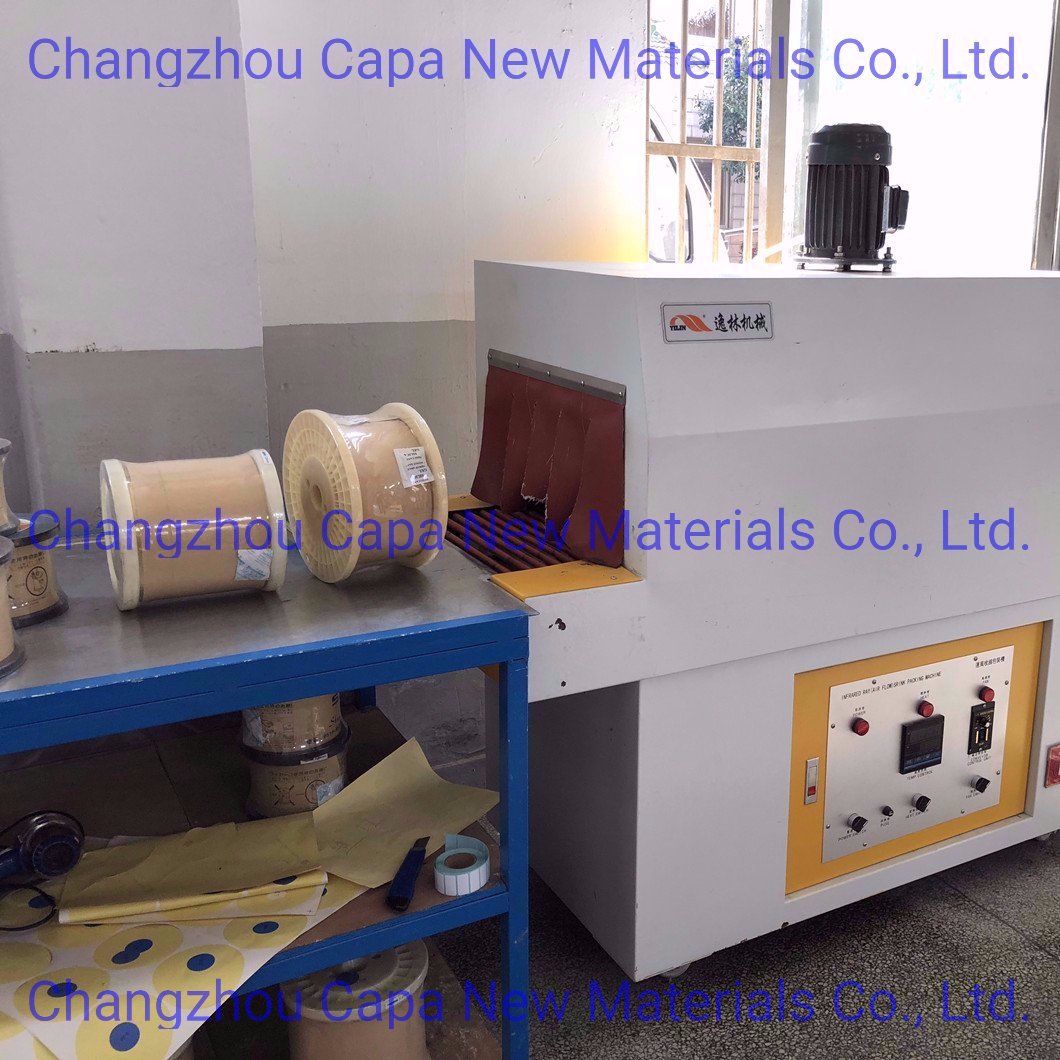

Packing & Shipping (20GP can put in 15-23 tons)
Excellent packaging is part of the product: three-layer packaging protection, First protection:special dust-proof paper for inner package, Second protection: precision PVC film for sealing, Third protection: seven-layer corrugated shockproof paper box to prevent oxidation and damage during transportation and storage.
Our Advantages:
1.Short delivery and timely delivery.
2.To be your partner,not only supplier.considerate after-sales service.
3.Professional manufacture with more than 10 years experience.
4.Full set of testing equipment to ensure products' performance.
5.Strict quality control process.
6.We are factory and our price is competitive.
7.Products can be customized according to your special requirements.
If you are interested in our products, it would be highly appreciated to contact me anytime.
EDM Brass Cut Wire FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO9001,14001,SGS,REACH ROHS and UL certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department with 5 inspection personnel. Quality inspection team including incoming material, process and finished product inspection.Strict Quality Control and full inspection for each reel of wire.
We have the solderability test instrument, automatic spring back angel test instrument and dielectric loss test instruments to ensure the quality in each step.
4. Q: What's the main market of your company?
A: We have customers all over the world. Abundant experience serving overseas market.
5. Q: What's your company 's product scope?
A: We have many kinds of products ,such as Copper Clad Aluminum Wire (CCA wire), Copper Clad Aluminum Magnesium (CCAM) Wire, Copper Clad Steel Wire (CCS wire), Tinned CCA wire, Tinned CCAM wire, Tinned CCS wire, enameled copper clad aluminum wire (Enameled CCA wire, ECCA Wire),Enameled copper wire, Enameled Aluminum wire (EAL wire), Silver plated wire, Composite Round (Tinned) copper wire, Copper Clad copper wire, CCA stranded wire & Parallel wire, CCS stranded Wire, CCA Busbar, Brass EDM Wire,power wire and cable,Coaxial cables, communication cables., etc.
6. Q: Where is your factory located? How can we visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China.
Near Shanghai, convenient transportation. We offer transportation service.
7.Q: How long is your delivery time?
A: Generally it is 5-10 days after confirm P.O., it is according to quantity.Sample order needs around 5 days, Formal order needs around 7-10 days.
8.Q: What is your terms of payment?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
9. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
If you have other questions, please feel free to contact us.
