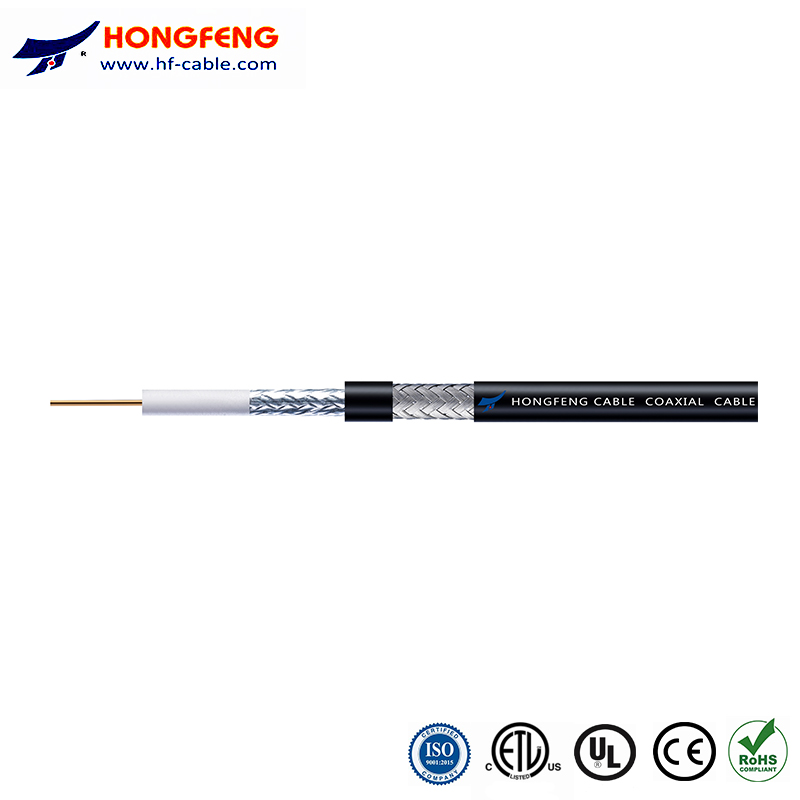

75ohm Rg59/RG6/Rg11 Coaxial Cable with UL/ETL/ CPR /Ce/RoHS/Reach Approved
Basic InfoModel NO.: RG59/RG6/RG11 Coaxial CableWire Core Material: Bc/CCS/TcCertification: CE, ISO, RoHS, UL, Reach/ETLModel: Rg59/RG6/Rg11Brand: RS or OEMSize: 5.9-10.3mmTrademark: RS or OEMTransport Package: Polybag,Blister,Shrink Wrap,Wooden Reel,Plastic ReSpecification: BC, CCS, CCA, TC, Al, Fo......
Send Inquiry
Product Description
Basic Info
Model NO.: RG59/RG6/RG11 Coaxial Cable
Wire Core Material: Bc/CCS/Tc
Certification: CE, ISO, RoHS, UL, Reach/ETL
Model: Rg59/RG6/Rg11
Brand: RS or OEM
Size: 5.9-10.3mm
Trademark: RS or OEM
Transport Package: Polybag,Blister,Shrink Wrap,Wooden Reel,Plastic Re
Specification: BC, CCS, CCA, TC, Al, Foam PE, PVC, PE, LSZH
Origin: China
HS Code: 8544200000
Application:
Used as a distribution cable for Outdoor CATV, CCTV systems and as a connection cable for satellite systems
where lower attenuation required.
| Construction(Standard Shield) | Diameter(mm) | ||||||
| Item | Material | RG59 | RG6 | RG11 | |||
| Center Conductor | Copper Clad Steel/BC | 0.81 | 1.02 | 1.63 | |||
| Dielectric | Foam PE | 3.66 | 4.57 | 7.11 | |||
| 1st Shield | Bonded Aluminum Foil | 3.84 | 4.75 | 7.29 | |||
| 2nd Shield | Aluminum Wire Braiding/CCA40%-90% | / | / | / | |||
| Jacket | PVC | 6.10 | 6.91 | 10.16 | |||
| Electrical Charateristics | |||||||
| Impedance(Ω) | 75±3 | ||||||
| Capacitance(pF/m) | 52±2 | ||||||
| Velocity of Propagation(%) | 85.0 | ||||||
| Shielding Effectiveness | |||||||
| 5-1000MHZ(dB) | ≥80% | ||||||
| Return Loss | |||||||
| 5-1000MHZ(dB) | ≥22 | ||||||
| 1000-2000MHZ(dB) | ≥20 | ||||||
| Attenuation @68°F.(20 ºC ) | |||||||
| @Frequency(Mhz) | Max Attenuation(dB/100m) | ||||||
| RG59 | RG6 | RG11 | |||||
| 5 | 2.82 | 1.90 | 1.25 | ||||
| 55 | 6.73 | 5.25 | 3.15 | ||||
| 187 | 11.81 | 9.35 | 5.74 | ||||
| 211 | 12.47 | 10.00 | 6.23 | ||||
| 400 | 16.73 | 13.61 | 8.53 | ||||
| 500 | 18.70 | 15.29 | 9.51 | ||||
| 750 | 22.87 | 18.54 | 11.97 | ||||
| 865 | 24.67 | 20.01 | 13.05 | ||||
| 1000 | 26.64 | 21.49 | 14.27 | ||||
| 1500 | 32.50 | 26.80 | 16.80 | ||||
| 1800 | 35.60 | 28.90 | 18.60 | ||||
| 2200 | 41.20 | 32.20 | 20.70 | ||||
| 3000 | 45.20 | 37.60 | 24.90 | ||||

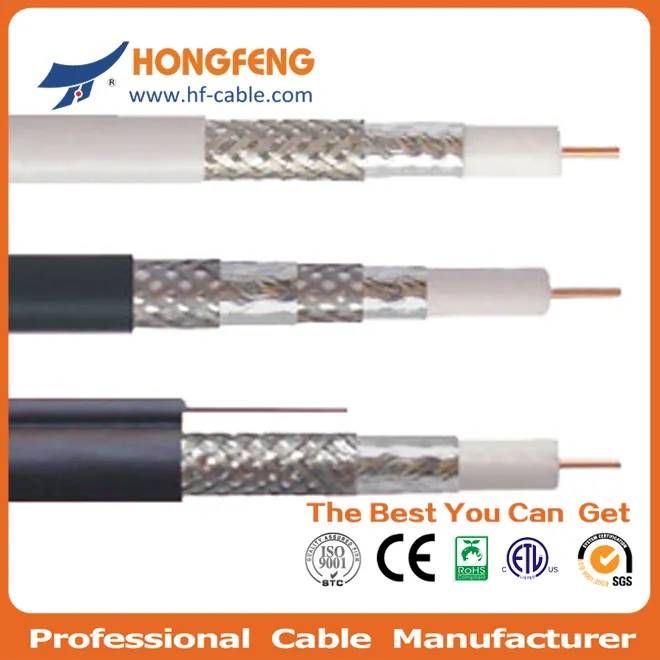

RS Coaxial Cable Specification is accordingly to Commscope/Belden/TFC Standard,Such as Standard Shield/tri-shield, Quad Shield Cable. With messenger/without messenger

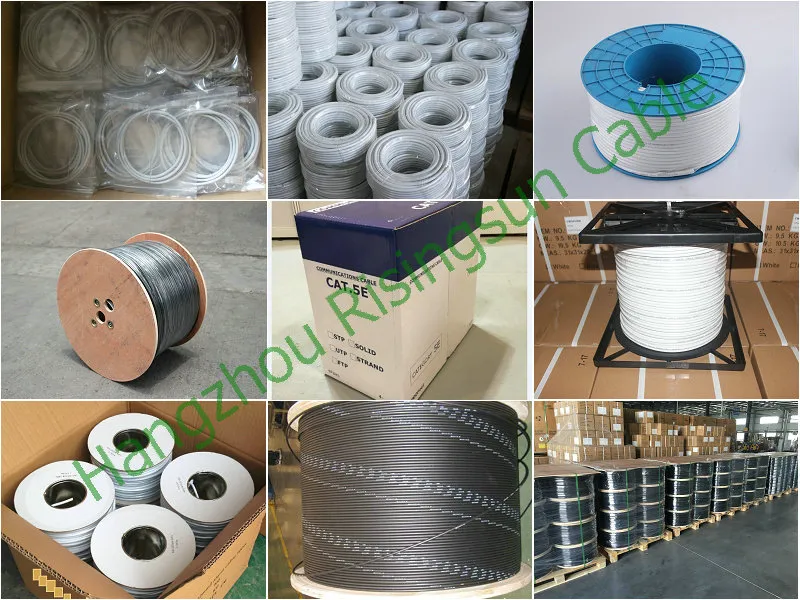

Packing & Shipping
(1) Packing Lengths:3m/5m/10m/20m/50m/100m/200m/305m/500m/1000m etc
(2) Inner Packing:Polybag,Blister,Shrink Wrap,Wooden reel,Plastic reel,or Cardboard drum
(3) Outer Packing:Carton box,Pull out box,Pallet available
(4) Other packing available according to clients' request
(5) Usually we deliver our products by SEA.
Other delivery methods are available upon request from clients.
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located inLin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
