75ohm Cable RG6 with Messenger
75ohm cable RG6 with messengerDiscription: Type75ohm cable RG6M coaixal cableConductor1.02±0.01mm Bare copperInsulation4.57±0.05mm Foam PEShieldBonded Al FoilBraid Coverage60%AlJacket6.90±0.01mm PVCMessenger1.30mm SteelElectrical Performance:Sparker Test4000VACImpeda......
Send Inquiry
Product Description

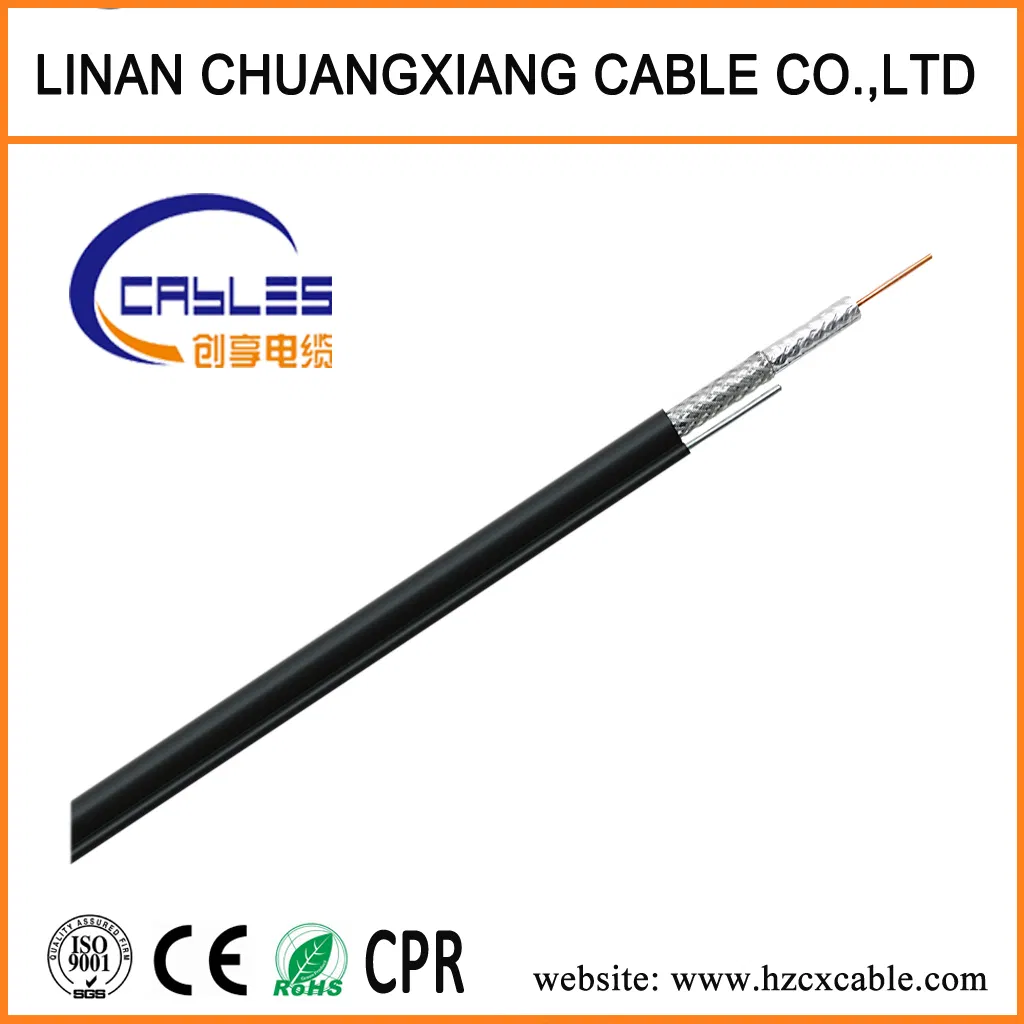

75ohm cable RG6 with messenger
Discription:
| Type | 75ohm cable RG6M coaixal cable |
| Conductor | 1.02±0.01mm Bare copper |
| Insulation | 4.57±0.05mm Foam PE |
| Shield | Bonded Al Foil |
| Braid Coverage | 60%Al |
| Jacket | 6.90±0.01mm PVC |
| Messenger | 1.30mm Steel |
Electrical Performance:
| Sparker Test | 4000VAC |
| Impedance | 75±3 Ohm |
| Capacitance | 54±3pF/m |
| Velocity of Propagation | 82% (min) |
| Return Loss | 20dB min (5-2300MHz) |
Technical Performance:
| Frequency (MHz) | Maxinum Attenuation (dB/100FT) | Maxinum Attenuation (dB/100M) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2150 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
