50 Ohms 7D-Fb RF Coaxial Cable
SHG quality 50 ohms RF Coaxial Cable 7D-FB, excellent performance, quality warranty.Certificates: ETL, CE, RoHS, ISO90011) ConstructionCenter Conductor: 2.60 Solid Bare Copper Clad Aluminum or BCDielectric: 7.30mm foam PEShield: Boned APA (double Aluminum foil)Braid Coverage: 95% Tinned Copper wires......
Send Inquiry
Product Description
SHG quality 50 ohms RF Coaxial Cable 7D-FB, excellent performance, quality warranty.
Certificates: ETL, CE, RoHS, ISO9001

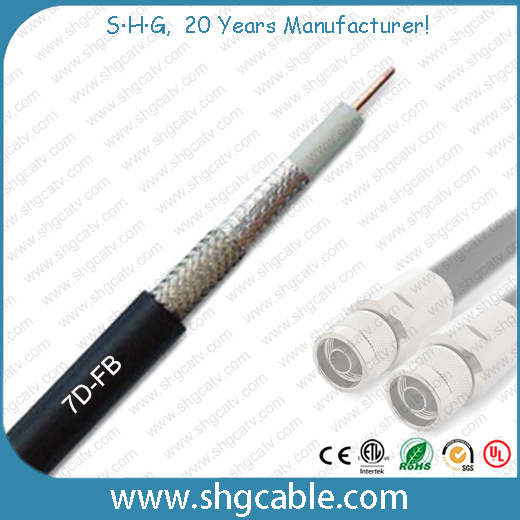

1) Construction
Center Conductor: 2.60 Solid Bare Copper Clad Aluminum or BC
Dielectric: 7.30mm foam PE
Shield: Boned APA (double Aluminum foil)
Braid Coverage: 95% Tinned Copper wires
Jacket: 9.80 mm PVC
2) Characteristics
Sparker Test: 2000VAC
Dielectric Strength: Conductor to Shield: 3 Sec. @10000 VDC
Impedance: 50+3Ohm
Capacitance: 29.5+3pF/Ft (Nom. )
Velocity of Propagation: 87%
DCR: Conductor: 1.87 ohms/1000Ft
SRL: 15dB (10 to 300 MHz) Swept Tested
Shielding effectiveness dB> 90
3) Packing
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll,
300yard/roll. Other lengths according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
4) Applications:
@ Wireless Local Loop (WLL)
@ Land Mobile Radio (LMR)
@ AP, Bridges or CPE
@ Local MultiPoint Distribution System (LMDS)
@ MMDS
@ Personal Communication Systems (PCS)
@ Indoor or Outdoor Use
@ Direct Bury or Tower Use
@ Fixed Wireless
@ GPS WLAN WISP SCADA
5) Attenuation Sheet @ 20 degree
Certificates: ETL, CE, RoHS, ISO9001
1) Construction
Center Conductor: 2.60 Solid Bare Copper Clad Aluminum or BC
Dielectric: 7.30mm foam PE
Shield: Boned APA (double Aluminum foil)
Braid Coverage: 95% Tinned Copper wires
Jacket: 9.80 mm PVC
2) Characteristics
Sparker Test: 2000VAC
Dielectric Strength: Conductor to Shield: 3 Sec. @10000 VDC
Impedance: 50+3Ohm
Capacitance: 29.5+3pF/Ft (Nom. )
Velocity of Propagation: 87%
DCR: Conductor: 1.87 ohms/1000Ft
SRL: 15dB (10 to 300 MHz) Swept Tested
Shielding effectiveness dB> 90
3) Packing
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll,
300yard/roll. Other lengths according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request
4) Applications:
@ Wireless Local Loop (WLL)
@ Land Mobile Radio (LMR)
@ AP, Bridges or CPE
@ Local MultiPoint Distribution System (LMDS)
@ MMDS
@ Personal Communication Systems (PCS)
@ Indoor or Outdoor Use
@ Direct Bury or Tower Use
@ Fixed Wireless
@ GPS WLAN WISP SCADA
5) Attenuation Sheet @ 20 degree
| Attenuation at typical frequencies(dB/ 100m) | ||||||||
| 50MHz | 450MHz | 900mhz | 1500MHz | 1800MHz | 2500MHz | |||
| 2.9 | 8.9 | 12.8 | 16.7 | 18.6 | 22.4 | |||
