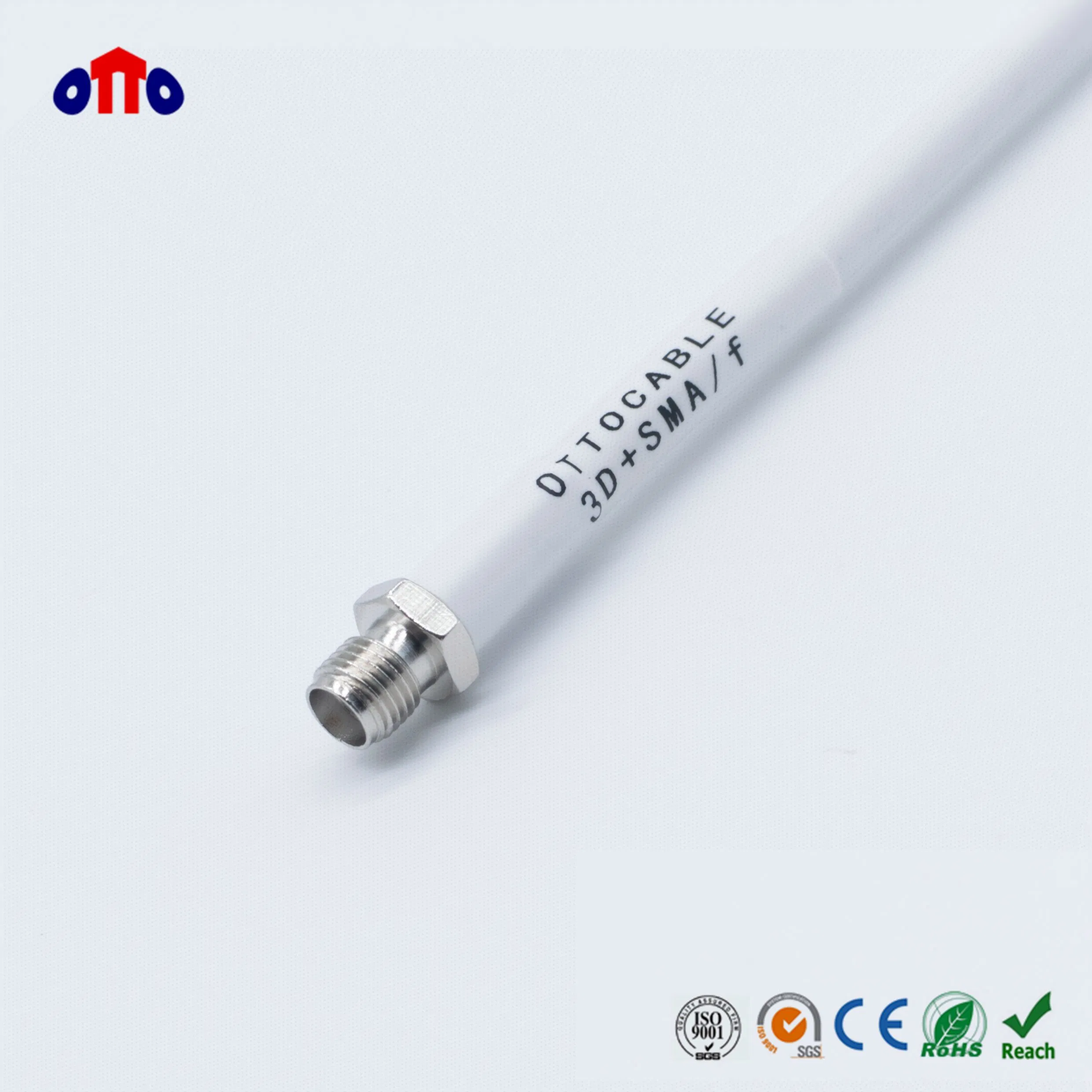

50 Ohm Low Loss 3D- FB Coax Jumper Cable with Connectors
50 Ohm Low Loss 3D-FB Coax Jumper Cable with ConnectorsApplication: Antennas Base Station Atenna Cellphone Signal Repeaters Signal transmissionFeatures: 50 Ohm Good shielding effectiveness 0 - 6GHz Excellent performance at high frequency Replacement for RG58 REACH/RoHS compliant, CE certified. OEM/O......
Send Inquiry
Product Description
50 Ohm Low Loss 3D-FB Coax Jumper Cable with Connectors
Application:
• Antennas
• Base Station Atenna
• Cellphone Signal Repeaters
• Signal transmission
Features:
• 50 Ohm
• Good shielding effectiveness
• 0 - 6GHz
• Excellent performance at high frequency
• Replacement for RG58
• REACH/RoHS compliant, CE certified.
• OEM/ODM
Assemblies:
• N, TNC, BNC, SMA......
• Customized Cable length / color/ roll size/ packing
• Various colors of Heat shrinkable tube

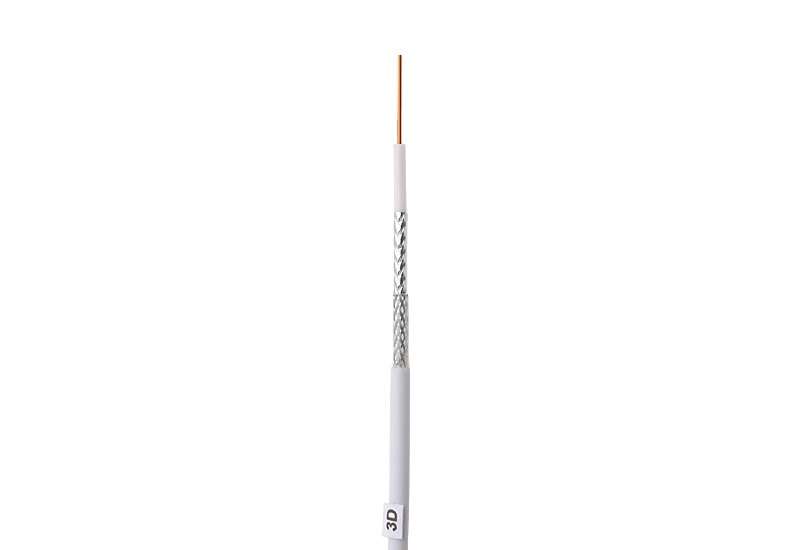

Construction
| Item | Material | Diameter(mm) |
| Inner Conductor Dielectric First Shield Second Shield Jacket | Bare Copper / Copper Clad Steel Foam PE Bonded Aluminum Foil Tinned Copper Wire Braid PVC/LSZH | 1.00 3.00 3.10 3.60 5.00 |
Electrical Characteristics
| Impedance (Ω) Capacitance (pF/m) Velocity of Propagation (%) Return Loss Screening Effectiveness(db) VSWR Installation Temp(ºC) Operating Temp(ºC) Bending radius(mm) | 50±3 82 81.0 ≥20 ≥75 ≤1.2 -25 to +70 -25 to +70 27.0 |
Attenuation (@20ºC)
| Frequency(MHz) | Max Attenuation(dB/100m) |
| 900 1200 1500 1800 2000 2200 2500 | 31.8 37.2 41.5 45.6 48.2 50.6 54.1 |
