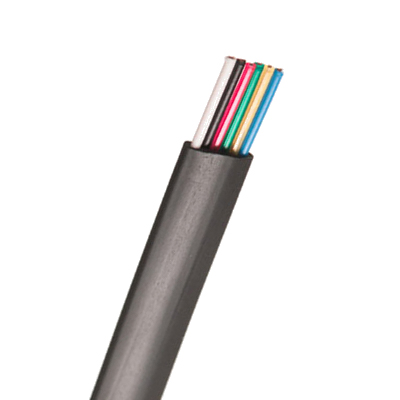

3pair/ 6core Multicore 36AWG PVC Indoor Flat Telephone Cable
3Pair/6Core MultiCore 36AWG PVC Indoor Flat Telephone Cable.6core/3pair, 6*7/0.12mm 36AWG inside with PVC sheath indoor telephone cable. 3,000 Hz bandwidth, perfectly adequate for a voice signal. It supports connection of speech, digital telephone, fax and other data equipment, and is the broadband ......
Send Inquiry
Product Description
6core/3pair, 6*7/0.12mm 36AWG inside with PVC sheath indoor telephone cable. 3,000 Hz bandwidth, perfectly adequate for a voice signal. It supports connection of speech, digital telephone, fax and other data equipment, and is the broadband users' lead-in wire of telecommunication integrated wiring
Applications:
Flat telephone cable for modular connectors -RJ 45
Type: 6C Telephone Cable
No. of leads: 6
Conductor(No./mm): 6*7/0.12mm
Outer Diameter: 4.3mm
Conductor Material: Bare Copper
Insulation Material: PVC
Rated Temperature: 70C
Reated Voltage:300V
Features: High flexible
SPECIFICATION:
1) 2C 7/0.12mm x 2C; O.D.: 2.2 x 4.0mm
2) 4C 7/0.12mm x 4C; O.D.: 2.4 x 4.7mm
3) 6C 7/0.12mm x 6C; O.D.: 2.5 x 6.6mm
4) 8C 7/0.12mm x 8C; O.D.: 2.6 x 8.8mm
5) 7 x 0.16mm x 2C; O.D.: 2.2 x 4.7mm
6) 7 x 0.16mm x 4C; O.D.: 2.5 x 5.0mm
7) 7 x 0.16mm x 6C; O.D.: 2.6 x 7.0mm
8) 7 x 0.16mm x 8C; O.D.: 2.8 x 9.2mm
Max attenuation at 20°C10 | Min worst pair to pair NEXT loss at 772 kHz | Min worst pair Structural Return Loss (SRL) | |||
At 772 kHz | 2.2 dB/100 m | At 772 kHz | 43 dB | Up to 10 MHz | 12dB |
At 1 MHz | 2.6 dB/100 m | At 1 MHz | 41 dB | At 16 MHz | 10dB |
At 4 MHz | 5.6 dB/100 m | At 4 MHz | 32 dB |
|
|
At 8 MHz | 8.5 dB/100 m | At 8 MHz | 27 dB |
|
|
At 10 MHz | 9.7 dB/100 m | At 10 MHz | 26 dB |
|
|
At 16 MHz | 13.1 dB/100 m | At 16 MHz | 23 dB |
| |
Notes:
More Telephone Cable(HYA, HYAT, HYAT53, HYAT23, HYATC, HYAC, HSYV, HYV, etc)
can be produced according to the customer's demands.
